| Place of Origin: | China |
|---|---|
| Brand Name: | Liteon |
| Model Number: | 1400W Platinum Edition |
| Minimum Order Quantity: | 1 pieces |
| Price: | 30 USD/pcs |
| Packaging Details: | Carton |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |

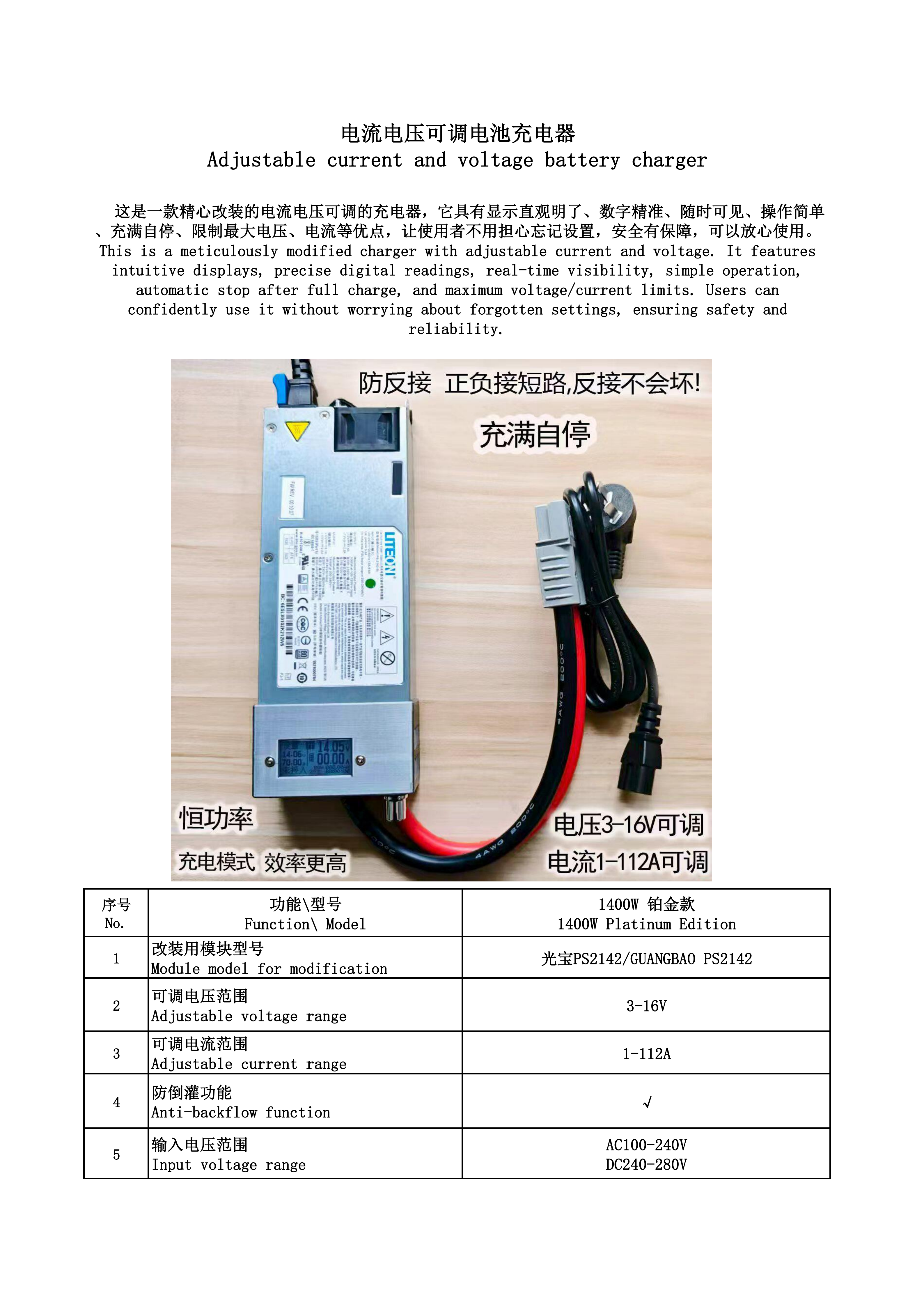

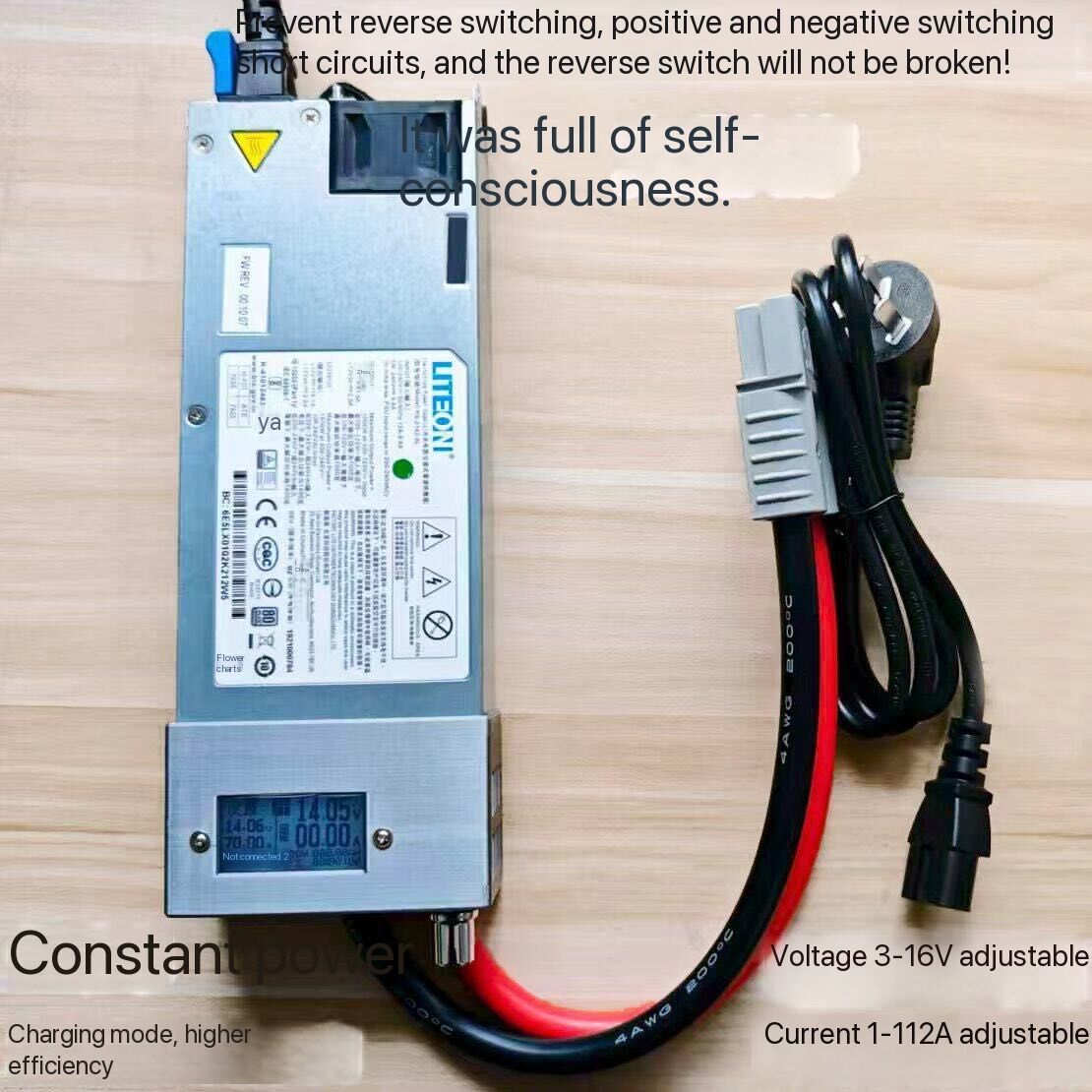

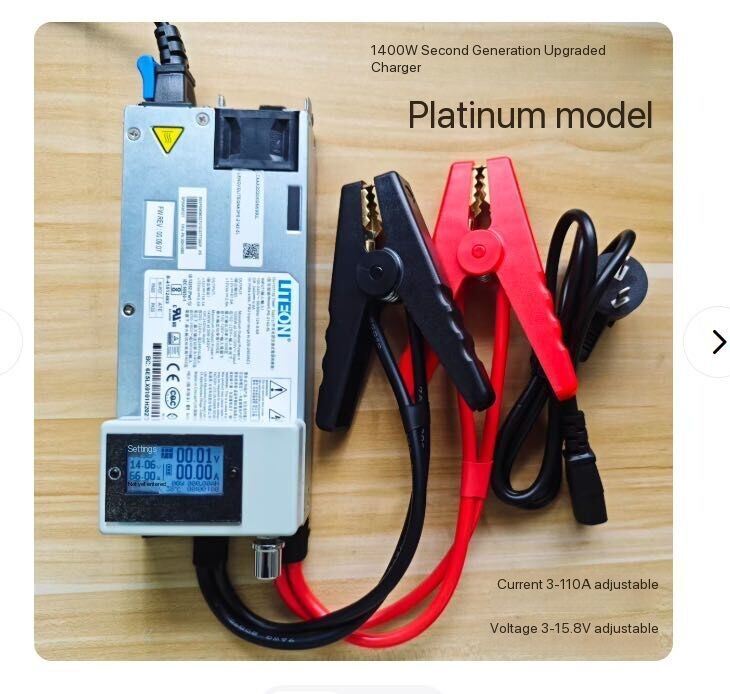

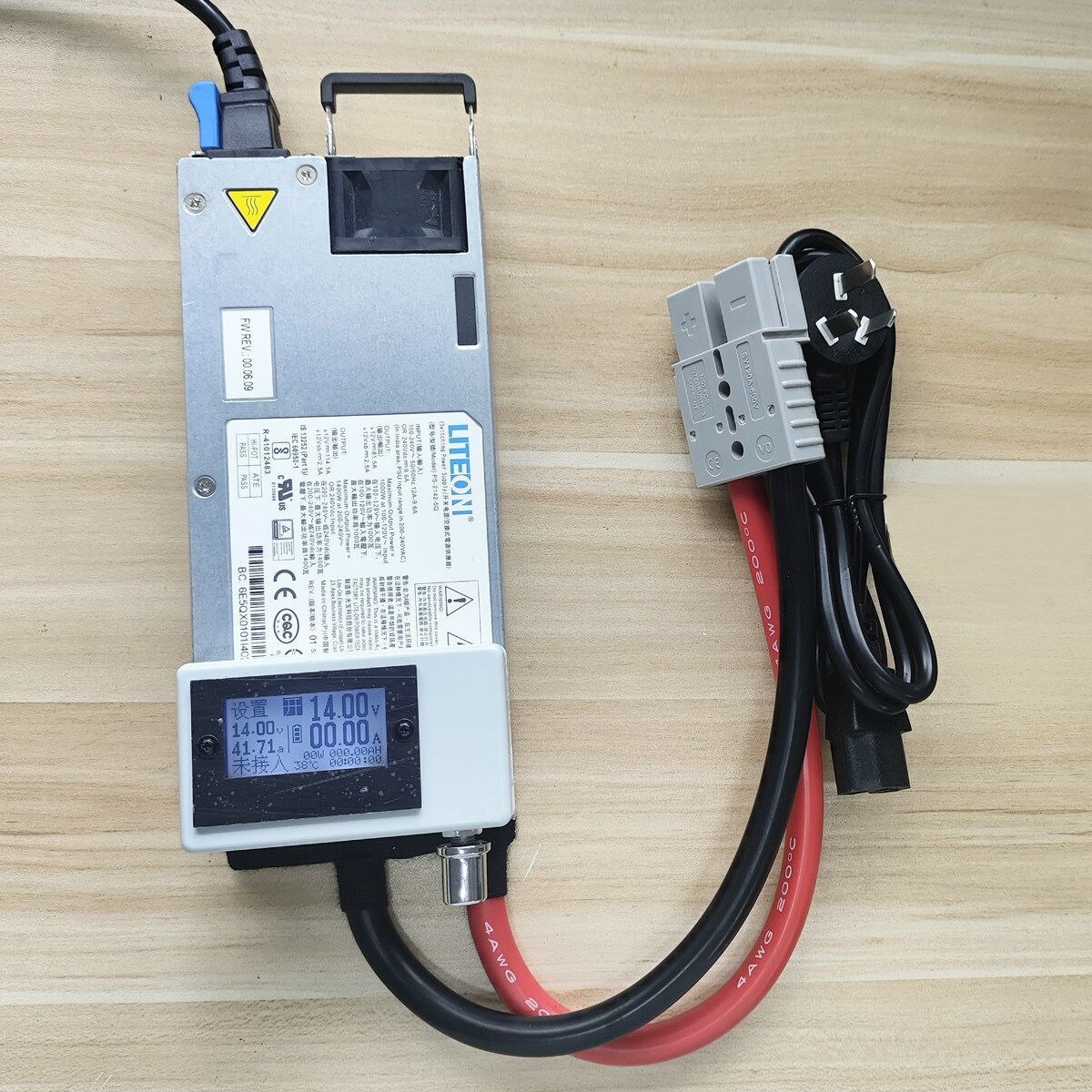

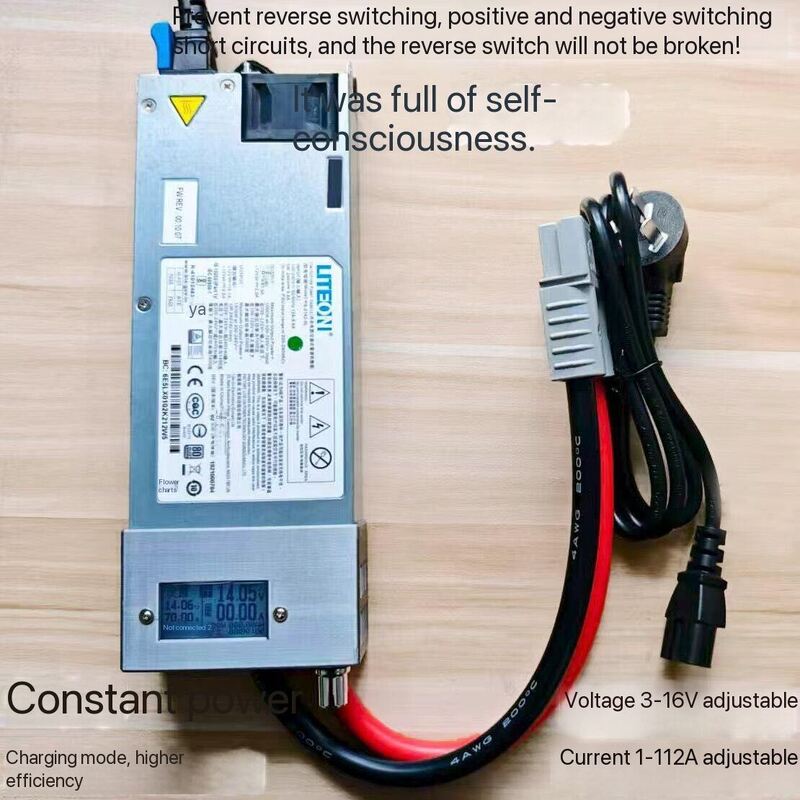

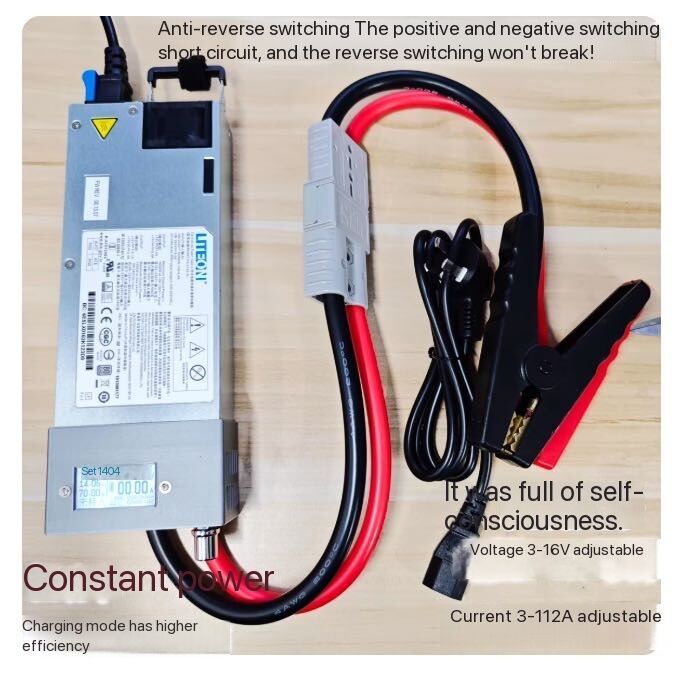

This is a meticulously modified battery charger with adjustable current and voltage. It features intuitive displays, precise digital readings, real-time visibility, simple operation, automatic stop after full charge, and maximum voltage/current limits. Users can confidently use it without worrying about forgotten settings, ensuring safety and reliability.
| 序号 No. |
功能型号 Function Model |
1400W 铂金款 1400W Platinum Edition |
| 1 | 改装用模块型号 Module model for modification |
光宝PS2142/GUANGBAO PS2142 |
| 2 | 可调电压范围 Adjustable voltage range |
3-16V |
| 3 | 可调电流范围 Adjustable current range |
1-112A |
| 4 | 防倒灌功能 Anti-backflow function |
√ |
| 5 | 输入电压范围 Input voltage range |
AC100-240V DC240-280V |
| 6 | 110V时可达电流 When the voltage is 110V, the current can reach |
80A |
| 7 | 输出线 Output cable |
4AWG 25平纯铜硅胶特软线 300A纯铜鳄鱼夹或120A安德森 4AWG 25mm² pure copper silicone-silicone composite flexible wire, 300A pure copper crocodile clip or 120A Anderson connector |
| 8 | 风扇声音 Fan noise |
温控风扇 随温度上升加速 The temperature-controlled fan accelerates as the temperature rises. |
| 9 | 2代数控显示 2nd Generation CNC Display |
|
| 10 | 显示充电电压 Display Charging Voltage |
√(精度2位小数) (2 decimal places) |
| 11 | 显示充电电流 Display Charging Current |
√ |
| 12 | 显示输出功率 Display Output Power |
√ |
| 13 | 显示充电电量 Display Charging Capacity |
√ |
| 14 | 显示充电时长 Display Charging Duration |
√ |
| 15 | 显示充电状态 Display Charging Status |
√ |
| 16 | 显示设置电压 Display Set Voltage |
√ |
| 17 | 显示设置电流 Display Set Current |
√ |
| 18 | 分辨率Resolution | 12864 |
| 19 | 屏显尺寸 Screen Display Size |
1.77寸/1.77inches |
| 20 | 存储设置数据 Store Setting Data |
√ |
| 21 | 负载/空载均可调压 Adjustable Voltage for Load/No Load |
√ |
| 22 | 负载/空载均可调流 Adjustable Current for Load/No Load |
√ |
| 23 | 一键关机 One Key to Shutdown |
√ |
| 24 | 充满自停 Auto-Stop When Fully Charged |
√ |
| 25 | 限制最大电压电流 Limit Maximum Voltage and Current |
√ |
| 26 | 过压保护 Overvoltage Protection |
√ |
| 27 | 过流保护 Overcurrent Protection |
√ |
| 28 | 超功率保护 Overpower Protection |
√ |
| 29 | 高温报警 High Temperature Alarm |
√ |
| 30 | 锁屏功能 Screen Lock Function |
√ |
