5.5 Inch Handheld Data Collector 4G PDA Android Barcode Scanner

Basic Information
Place of Origin: JiangSu,China
Brand Name: Barway
Certification: CE, FCC, CCC, CTA
Model Number: SD55
Minimum Order Quantity: 1pcs
Price: 289-310USD
Packaging Details: neutral packing
Delivery Time: 7-15days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000box per week
Detail Information
Item: PDA Operation: Android 8.1
CPU: Octa-Core 2.0GHz Warranty: 1 Year
Memory: 2GB+16GB Weight: 240g
Size: 150mm*72.5mm*15mm Certification: CE, FCC, CCC, CTA
High Light:

5.5 inch Handheld Data Collector

,

Logistics Handheld Data Collector

,

4G pda android barcode scanner


Product Description

Barway 4G Rugged Logistics PDA Scanner Android Handheld Data Collector SD55 For Warehouse



Feature

  • Android 8.1 with powerful hardware:
  • Android 8.1 running on Octa-core 2.0GHz 64-bit High performance CPU with 4GB LPDDR4x High Speed RAM, 64GB flash, burst out powerful parallel processing performance, help you handles impossible.
  • 5.5-inch Smart mobile:
  • 5.5-inch 18:9 720*1440 screen, over 400 cd/m3 high brightness, full screen with 5 point touch panel, provide Extraordinary Operational Experience.
  • Powerful barcode scanning:
  • With enhancement high performance 2D barcode engine, give out smooth scanning experience.
  • Portable and Rugged construction:
  • Sculptured curve to fit human hand, 240g total weight with battery and carefully calculated dimensions, to find perfect balance between portable and longer battery life. Sealed to IP65 standards for water proof and 1.5m drop to concrete tested.
  • Reliable network connection:
  • With 4G world capability and dual band Wi-Fi support, SD55 could connect you to the world with High speed network anywhere all the time.
  • Accessories and configurations:
  • Cradle and wireless charger are available for you to choose as needed. Pikestaff designed to improve your work. Also come with medical version.

Specification



SD55LG Basic Parameters

OS
Android 8.1
CPU
Octa-Core 2.0GHz
RAM
4GB
ROM
64GB
Expansion
Micro SD (TF) card slot up to 128GB
Keypad
5 Side buttons: 2 volume buttons,2 function buttons(1 left and right),
1 power button
Audio
1609 Dual speakers,waterproof design,Dual silicon mic noise reduction
Notification
Sound/vibration/LED prompt
Dimentions
150mm*72.5mm*15mm
Weight( with battery)
240g
Camera

Camera
Rear camera 13MP AF(16MP AF option);Front Camera 5MP FF
Focus mode
Autofocus ; Front focus
Flash
Support single color LED flash
Display

Display
5.5 Inch Full Screen
Resolution
720*1440 18:9
Touch Panel
5-point capacitive touch screen
Power

Battery
Large-capacity unremovable Li-ion battery 4500mAh
Charging
PE fast charging, fully charged time< 4 hours
Wireless charging QI standard, 5w or 10w
Interface
Support USB-TypeC, support fast charge, support OTG
Communication

GPS
BT4.0 BLE
WLAN
WiFi 802.11 a/b/g/n 2.4G 5G
WWAN
FDD-LTE B1/B3/B5/B7 or B1/B4/B8/B13
TDD-LTE B38/B39//B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0
GPS
GPS,GLONASS,BeiDou,AGPS,option UBLOX8030
Performance

Operation Temperature
-20℃ ~60℃
Storage Temperature
-30℃ ~+80℃
Humidity
5%~95%(No condensation)
Sealing
IP65
Sealing
In the operating range, 6 sides can withstand the impact of 1.5 meters
drop to the concrete floor
Tumble Test
6 contact surfaces rolling for 1000 times/ 0.5M
ESD
±15kV Air Discharge, ±8kV Contact Discharge
Certificate
CCC,CTA,CE,FCC
Extensibility

NFC RFID Reader
NFC (PN548) Support NFC Reader/writer, ISO14443-A/B/F, ISO18092, FeliCa, ISO15693
Barcode Scanner
1D/2D: CM60 or Speedata SD5670


PSAM
Support
Sensor
Geomagnetism, acceleration, light perception distance,berometer(optional),
gyroscope (optional)



Product&Application

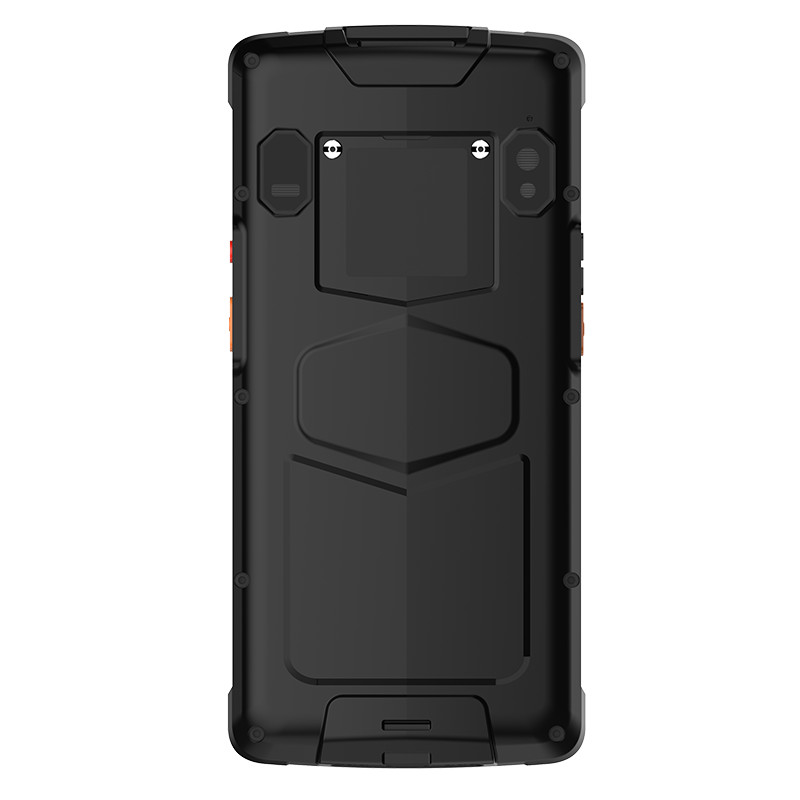

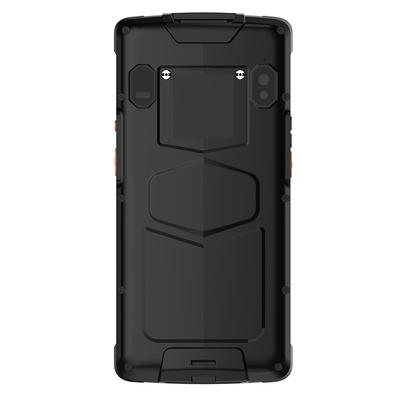

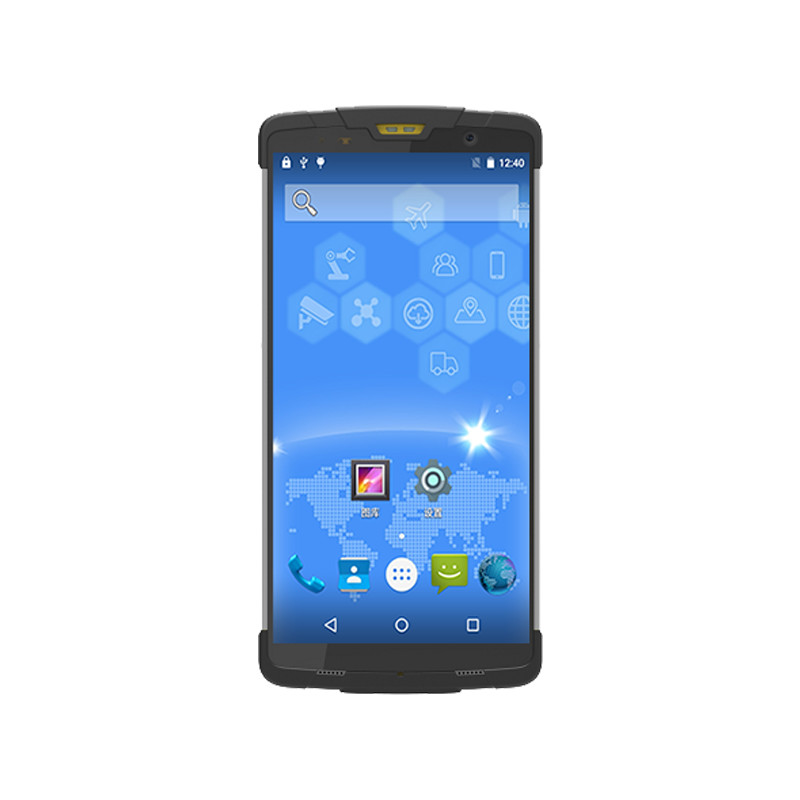

5.5 Inch Handheld Data Collector 4G PDA Android Barcode Scanner 0

5-point capacitive touch screen.

5.5inch with clear vision.

720*1440 resolution.

5.5 Inch Handheld Data Collector 4G PDA Android Barcode Scanner 1

IP65 Protection.

5.5 Inch Handheld Data Collector 4G PDA Android Barcode Scanner 2

GPS:High precision by ceramic antenna and u-blox chip.

5.5 Inch Handheld Data Collector 4G PDA Android Barcode Scanner 3

Front 1609 speaker;Dual mic,noise reduction;Suitable for all noisy environment.

13Million HD Camera.
