Android 8.1 Handheld Data Collector Barcode Scanner With Display Screen

Basic Information
Place of Origin: JiangSu,China
Brand Name: Barway
Certification: CE FCC RoHS, FCC, ce, RECH, RoHS, Other
Model Number: NFT10
Minimum Order Quantity: 1pcs
Price: 265-286USD
Packaging Details: neutral packing
Delivery Time: 7-15days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000box per week
Detail Information
Item: PDA Operation: Android 8.1
Dispaly: 5.65 Inch,HD,IPS,2160*1080 Resolution Warranty: 1 Year
Memory: 4GB+32GB Weight: 262g
Size: 158mm*76mm*13.9mm Certification: CE FCC RoHS, FCC, Ce, RECH, RoHS, Other
High Light:

Android 8.1 Handheld Data Collector

,

4G LTE Handheld Data Collector

,

Display screen barcode scanner data collector


Product Description

Barway 4G Handheld Data Collector Scanner Terminal NFT10 With Display For Warehouse



Feature

  • NFT10 4G LTE Android rugged handheld PDA with Fingerprint ID handset IP67
  • NFT10 5.7' PDA handheld computer android data collector mobile terminal
  • Android 9 Rugged Phone,Rugged Biometric Fingerprint QR barcode scanning PDA for warehouse

Specification

System Configuration
CPU
Octa-core,2.3Ghz MTK6765
Operating system
Android 8.1
Memory
32 GB +4 GB(Support DDR4 64GB+6GB)
Extended slot
T-flash card (Up to 64GB )
Display
5.65 inch,HD ,IPS,2160*1080 resolution
Touch Panel
LG / JDI glass screen
camera: (optional)
13MP,PDAF, with flash LED rear camera, 5MP front camera
Exit Window
Corning®Gorilla®glass

Keypad
Three virtual keys: Menu key, home key, back
Key;1 power key, 2 scan keys, 2 volume keys
Battery
5000mAh removable lithium polymer battery
Audio
Built-in microphone /Micro USB
Notification
Vibration prompt /LED prompt/audio prompt
Vibration Motor
Built-in programmable vibration motor
Sensor
Proximity/Light Senor,Accelerometer,Gyro E-compass
Operating Environment
Working Temp
-20℃ ~ 55℃
Storage Temp
-40°C ~ 60°C

-40 °C~ 70°C (-40°F to 158°F) battery not included
Electrostatic
Conforms to ±12 kV air discharge, ±8 kV
direct discharge
Relative humidity
0 ~ 95%(non-condensing)
Protection grade
IP67 grade
Anti-dropping
1.5-meter drops to concrete ground
Development Tools
Android SDK
Programming Language
Java
Structural Parameters
Dimensions
158mm*76mm*13.9mm
Weight
236g (battery included)
Communication Transmission
Wireless WAN (Network frequency)
GSM: B2/3/5/8
WCDMA: B1/2/5/8
CDMA/CDMA-EVDO:BC0 TD-SCDMA:B34/39
TDD-LTE: B34/38/39/40/41
FDD-LTE: B1/3/4/5/7/8/12/17
Wireless WAN (Data service)
GSM/WCDMA/TDD-LTE/FDD-LTE
Wireless LAN
Wi-Fi 802.11ac/a/b/g/n (Dual-band:2.4G+5G).
Bluetooth
Bluetooth 5.0
GPS
1. Support GPS/AGPS/Bei Dou
2. Receive more than 12 satellites.
3. Accuracy: within 10M
4. Hot start average < 15s, open space/cold start average < 60s
The drift value is the true value
1D Laser Scanner
Scan Resolution
≥5 mil
Rotate Angle
±35°
Pitch Angle
±65°
Skew Tolerance
±50°
Ambient Light
Sunlight:10,000ft.Candles(107,640Lux) Artificial Light:450ft.Candles(4844Lux)
Scan Frequency
104 ± 12/sec
Laser Safety Grade
Class II
ID/2D Area Imager
Scan Resolution
3 mil c39/128
Rotate Angle
Omnidirectional
Pitch Angle
±45°
Skew Tolerance
±65°
Scan Frequency
1 scans / 50ms
Laser Safety Grade
Class II
Image Resolution
844(H) X 640(V)
Image Frame
60fps
Light Source System
White light,laser aiming
Minimum Printing Contrast
20%
NFC(optional)
Protocol
ISO14443A/14443B
Frequency
13.56MHz
Reading Distance
2cm
Input/Output Ports
USB Port
1PCS( Type-C)
SIM Card Port
Dual micro-SIM card slots
Accessories
Standard
Charger, USB date cable, Battery, Lanyard,
Steel film

Optional
Protective case,cradle
1.Bluetooth code scanning ring (with charger base)
2.Transparent TPU case
3.TOF measurement volume back clamp module / compatible with built-in TOF module
4.UHF RFID handle ( with battery)



Product&Application

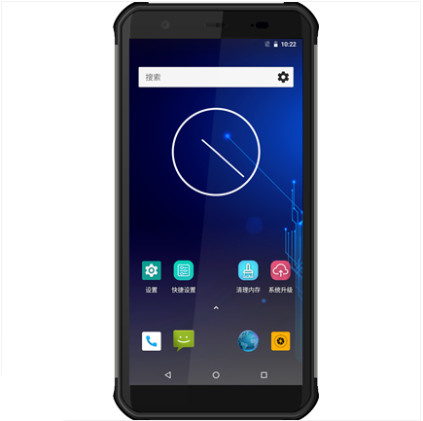

Android 8.1 Handheld Data Collector Barcode Scanner With Display Screen 0

Industrial-grade capacitive panel.

Android 8.1 Handheld Data Collector Barcode Scanner With Display Screen 1

Suitable for one-hand operation,5.65-inch.1080*2160.

Android 8.1 Handheld Data Collector Barcode Scanner With Display Screen 2

Support wet and dry manual work and gloves touch.

Android 8.1 Handheld Data Collector Barcode Scanner With Display Screen 3

Rapid collection makes work more efficient.

High-speed scanning engine,supports1D/2D barcode scanning,fast scanning speed and high accuracy.

Android 8.1 Handheld Data Collector Barcode Scanner With Display Screen 4
