| Place of Origin: | China |
|---|---|
| Brand Name: | Jikong |
| Model Number: | 3.2inch LCD Display |
| Minimum Order Quantity: | 1 pieces |
| Price: | 5USD/pcs |
| Packaging Details: | Carton |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Interfaces: | RS485 | Handheld Data Collector: | Data Collector |
|---|---|---|---|
| Screen Size: | 3.2 Inch | Scan Speed: | 50 Scan/second |
| Pda Data Collector: | Data Collector | Port: | Ningbo/Shenzhen |
| Nfc: | NFC,13.56Mhz | Touch Screen Type: | Capacitive Screen |
| Ip Grade: | IP65 |
Product Introduction
1.本产品为一款3 .2 英寸LCD 显示屏,专为配套我司锂电池保护板使用而设计.可实时显示电池的电压,电流,电量(SOC)以及报警状态等关键信息,界面清晰直观.

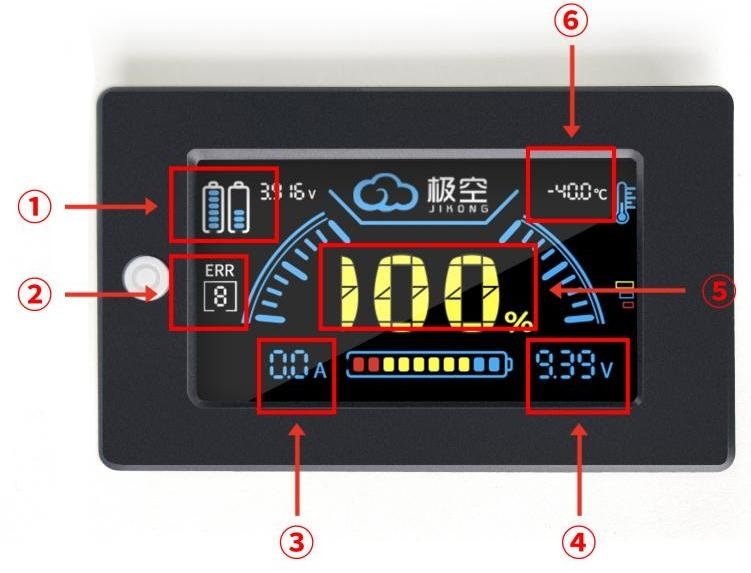

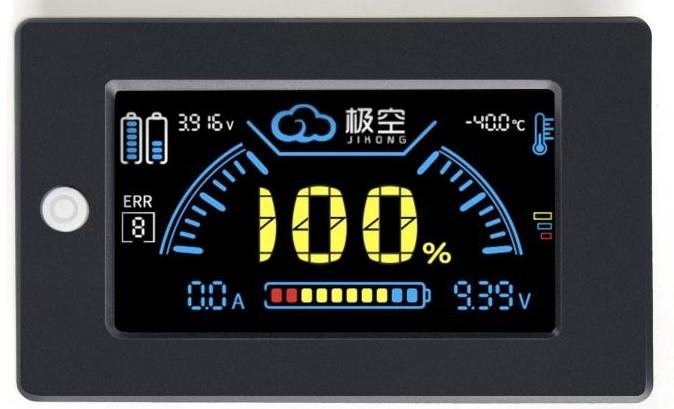

This product is a 3 .2-inch LCD display,specifically designed to be used with our company's lithium battery protection boards.It can display key information such as the battery's voltage, current,state of charge (SOC),and alarm status in real-time,with a clear and intuitive interface.
2.显示屏支持RS485 通信方式.供电电压范围为9V 至12V,适配多种电池供电系统.
The display supports RS485 communication.Its power supply voltage range is 9V to 12V, making it compatible with various battery-powered systems.
3.该显示屏外观小巧,色彩鲜明,适用于电动车,储能系统等对电池状态有可视化需求的场景,具备高可靠性和易用性.
With its compact design and vibrant interface,this display is ideal for electric vehicles, energy storage systems,and other applications requiring reliable and intuitive battery status monitoring.

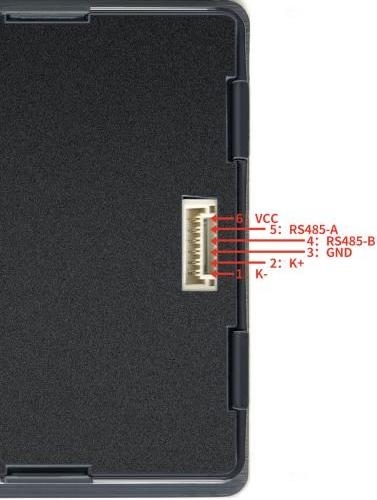

4.接口定义/Interface definition
|
连接器 Connector |
序号 | 说明 |
| 用户接口 User Interface GH1 .25-6P | 1 | K- |
| 2 | K+ | |
| 3 | GND | |
| 4 | RS485 -B | |
| 5 | RS485 -A | |
| 6 | VCC,接12V 供电 Connect to 12V power supply |
