Barway IP66 PDA 1d/2D Barcode Scanner Android 9 Smartphone Handheld Rugged Data Collector

Basic Information
Place of Origin: China
Brand Name: Unitech
Certification: CCC
Model Number: EA520
Minimum Order Quantity: 1pcs
Price: 480-490USD
Packaging Details: Original Package
Delivery Time: 3-15days
Payment Terms: T/T
Supply Ability: 1000pcs/week
Detail Information
OS: Android 11 Screen Size: 5.0 "HD(720X1280), 5.0 "HD(720X1280)
Prossor: 8-core (64 Bit), 2.0 GHz Processor Memory: 4+64G
NFC: NFC,13.56Mhz Bluetooth: Support
Weight: 242g Wifi: IEEE 802.11a/b/g/n/ac, 2.4GHz, 5GHz
Barcode Scanner: 1D/2D Imager Dimensions: 151*76.8*13.7MM
High Light:

Handheld Rugged Data Collector

,

IP66 PDA Handheld Data Collector


Product Description

Barway IP66 PDA With 1d/2D Barcode Scanner Android 9 Smartphone Handheld Rugged Data Collector



Advantages of mobile data terminal android T80

1. Based on android 9.0 platform, user-friendly interface, and a long lifecycle that matches that of the traditional T80.

2. Reduces user fatigue by offering all of the functionality needed in an easy -to-carry from factor.

3. Allows mobile workers to seamlessly interact with data in virtually any lighting condition.

4. Durable construction and sealing deliver reliable operation and maximize worker uptime.



5. Delivers full wireless coverage for applications inside and outside of the four walls,allowing real-time access to critical
data.

6. Delivers fast business transactions, allowing workers to complete multiple tasks quickly.

7. Provide functions test demo and the SDK code very easy to developed your Application



Specification of mobile data terminal android T80



PHYSICAL CHARACTERISTICS
Dimension and Weight
166 x 77.5x 22mm
Display and Touch Panel
4.5'' WVGA (480*854), 650000 colors Rugged dual touch capacitive touch panel
Power
Main battery: Li-ion, rechargeable, 4200mAh
Expansion Slot
2* PSAM (Optional): ISO7816 protocol , 1 SIM, 1 MicroSD (TF) slot
Interfaces
Type -C USB
Keypad
21 pcs soft silicon key
AC Adapter
Input: 100V-240V, 50-60Hz, 0.29A ,Output: 5V, 2A
PERFORMANCE CHARACTERSTICS
CPU
Cortex A-53 2.0 GHz quad-core
Storage
RAM+ROM: 2GB+16GB
Operating System
Android 9.0
USER ENVIRONMENT
Operating Temp.
-20°C to 55°C
Storage Temp.
-25°C to 70°C
Humidity
5%RH - 95%RH non condensing
Drop Specifications
Multiple 1.5m drops to concrete across the operating temperature range
Sealing
IP66
Developing Environment
SDK
Software Development Kit
Language and Tool
Java,Eclipse / Android Studio
DATA COMMUNICATION

WWAN
4G:TDD -LTE (B38 ,B39,B40,B41) FDD-LTE (B1,B3)
3G:WCDMA 850/900/1700/1900/2100MHz
2G: GSM/dege/GPRS 850/900/1800/1900MHz
WLAN
IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
blue tooth
Support BT2.0 +EDR/3.0 +HS/4.1+HS,Transmission distance is 5-10m
GNSS
GPS/AGPS, internal antenna
BARCODE READER(OPTIONAL)
1D Linear Scanner
Honeywell N4313
Symbol 955
Minde966
UPC/RAN,Code128 ,Code 39 ,code 93.Code11 ,Interleaved 2 of 5 ,Discrete 2 of 5 ,Chinese 2 of 5 ,Codabar ,MSI,RSS
2D imager scanner
Honeywell N3603 Honeywell N6603
Newland 3096
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX). etc.
COLOR CAMERA
Resolution
8MP autofocus camera with flash
NFC (optional)
Frequency
13.56MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
ACCESSORIES
Standard
AC Adapter,,USB cable,Cradle (Optional)

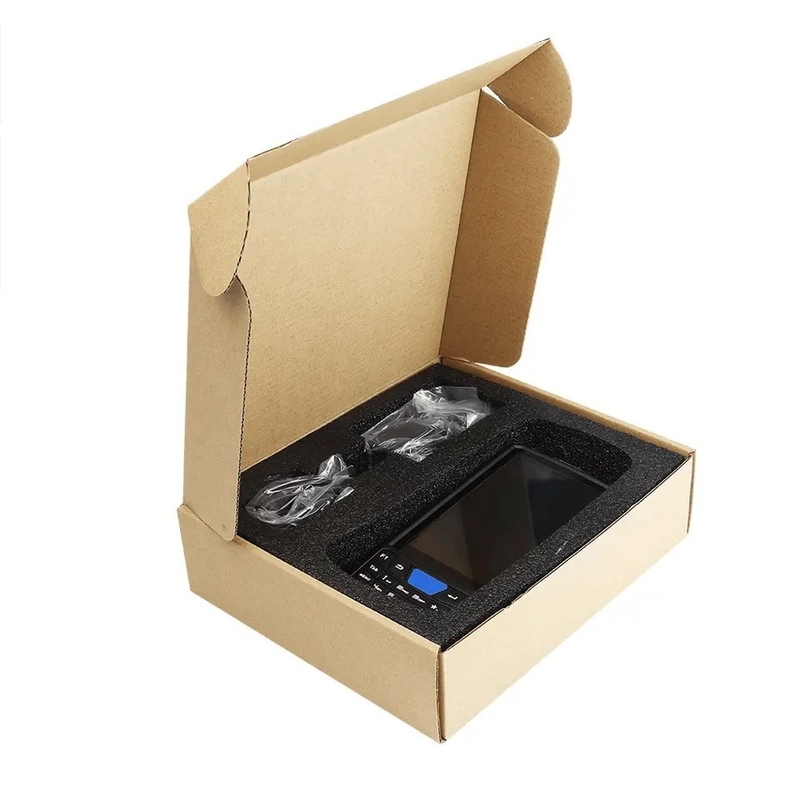

Packing and shipping
