| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Barway |
| Certification: | CE |
| Price: | $55.00/pieces 1-199 pieces |
| Packaging Details: | Foam wrap inside<br>Cardboard box parcel outside |
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Type: | Barcode Scanner | Scan Element Type: | CCD |
| Colour Depth: | 32 Bit | Interface Type: | Usb |
| Max Paper Size: | A4 | Optical Resolution: | 4 Miles |
| Scan Speed: | 200times/sec | Warranty(Year): | 3-Year |
| After-sales Service: | Return And Replacement, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support | Software Development Kit (SDK): | Yes |
| Product Name: | Barcode Scanner | Application: | Logistics Industry |
| Scan Mode: | Manual | Scan Type: | UPC/EAN/CODE 39 Etc |
| Advantage: | Barcode Scanners Optional | ||
| High Light: | Barway Mini Barcode Scanner,1D Mini Barcode Scanner,2D QR Barcode Scanner |
||

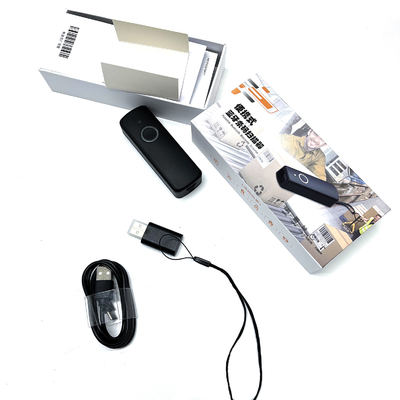

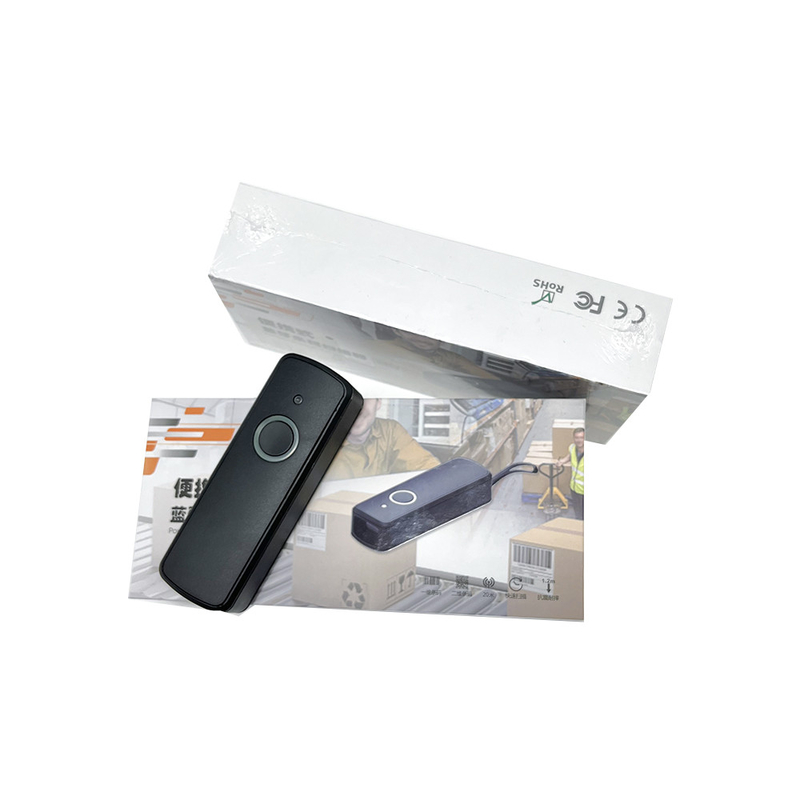

Barway Mini Portable Barcode Scanner For 1D 2D QR Barcode Usb CE A4 CCD Stock Manual Minno Apex 6 Scanner 4 Miles 32 Bit
|
performance parameter
|
|
|
|
|||
|
Image sensor
|
617nm led aiming light, white LED illumination light
|
|
|
|||
|
Decoding capability
|
1D: code128ean-13 / isbnisnncode32ean-8, UPC-A
UPC-E,UCC/EAN-128Code39CodabarCode93, Interleaved2of5. Industrial2of5/Stander2of5/IATA2of5 Matrix2of5Code11MSIPlesseyUKGS1DataBar. GS1 DataBarLimitGS1DataBarExpand,Datalogic2of5. 2D: QRcode, datamatrixpdf417, MicroPDF417, aztecode, direct transmission to Chinese |
|
|
|||
|
Resolution
|
640 * 480
|
|
|
|||
|
Trigger mode
|
manual scanning / continuous scanning / automatic induction scanning scanning angle: angle 360 ° elevation ± 55 ° deflection ± 55
scanning accuracy: ≥ 5MIL contrast: ≥ 20% |
|
|
|||
|
Scanning depth of field
|
ean1325-150mm (13mil90% PCs); QR 10-120mm (15mil30 bytes); PDF14730-110mm (667mil30 bytes)
|
|
|
|||
|
Bit error rate
|
1 / 5 million
|
|
|
|||
|
Wireless communication mode
|
paired mobile BT device: BT BLE4.0 wireless transmission distance: 20m (open)
|
|
|
|||
|
Inventory storage mode
|
offline storage mode: automatically store data when the scanning gun leaves the connection range, and the storage capacity is
512000 characters |
|
|
|||
|
Physical parameters
|
|
|
|
|||
|
Size
|
90mm * 30MM * 21mm (L x W x H)
|
Material
|
ABS+PC
|
|||
|
Cable standard
|
0.8m
|
|
|
|||
|
Environmental parameters
|
|
|
|
|||
|
Working temperature
|
-20 ℃ ~ 50 ℃ storage temperature: - 40 ℃ ~ 70 ℃
|
|
|
|||
|
Relative humidity
|
5% ~ 95% (non condensing)
|
|
|
|||
|
Seismic capacity
|
it can withstand multiple 12m free falls
|
|
|
|||
|
Electrical Parameters
|
|
|
|
|||
|
Voltage
|
dc5v5%
|
Standby current
|
0ma
|
|||
|
Battery charging time
|
2.5h
|
Battery working time
|
4h
|
|||
|
Lithium battery
|
800mA
|
|
|
|||
|
Charging mode
|
type charging line, plug-in direct charging
|
|
|
|||
|
Maximum working current (maximum)
|
200mA
|
|
|
|||
|
