Unitech EA520 Data Collector 2D Barcode Scanner 4+64G With Google Play Store PDA

Basic Information
Place of Origin: China
Brand Name: Barway
Certification: SGS
Minimum Order Quantity: 1pcs
Price: USD275-301 per pcs
Packaging Details: Carton 500mmx250mmx275mm
Delivery Time: 7-14 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100+PCS+Per Month
Detail Information
Model Number: EA520 Operating System: Android 11
Style: Handheld Computer Screen Size: 5.0 "HD(720X1280), 5.0 "HD(720X1280)
Memory: 4+64G IP Rating: IP67
Blue-tooth: Support Weight: 242g, 242g
Wifi: IEEE 802.11a/b/g/n/ac, 2.4GHz, 5GHz Barcode Scanner: 1D/2D Imager
Dimensions: 151*76.8*13.7MM
High Light:

Data Collector 2D Barcode Scanner


4+64G Memory 2D Barcode Scanner

Product Description

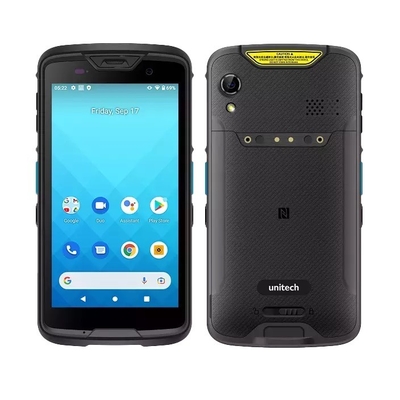

Unitech EA520 Data Collector 2D Barcode Scanner 4+64G Memory With Google Play Store PDA
Introducing the EA520, the 5” cutting-edge rugged smartphone delivers powerful barcode reading performance, convenient connectivity, durable but the lightweight design that just fits in the palm of your hand. This enhances the service level for various vertical applications within the retail, hospitality, and field service sectors.
• 5-inch display with 450nits sunlight readable
• Android 11 OS with GMS Certification
• Support most 1D / 2D barcodes on mobile screens, even DPM barcodes
• Lightweight design that just fits in the palm of your hand.
• All-In-One functionality: HF/NFC and 13MP camera
• Rugged: Corning® Gorilla® Glass 3 touch display, IP67 rated, and 1.5M drop (1.8M with boot case)
• Long-lasting removable 4250mAh battery
• Support Bluetooth® 5 / dual-band WLAN, fast roaming / 4G LTE
• Support MDM Software Solutions and utilities such as MoboLink.

Lightweight and Strong Enterprise Smart Phone
System function
operating system
Google Android 11 (GMS certified)
Rear lens: 13 million pixels (with auto focus and LED flash)
Front lens: 8 million pixels
8-core (64 bit), 2.0 GHz processor
Expansion slot
MicroSD (up to 128GB)
Memory capacity
AGPS, GPS, GLONASS, Beidou, Galileo
Display / touch screen
5 "capacitive color multi touch screen, Resolution: 720 x1280 (hd), Corning gorilla high-intensity touch screen, Support glove and
wet finger operation mode
wireless network
IEEE 802.11a/b/g/n/ac, 2.4GHz and 5GHz
Support 802.11d/e/h/i/j/k/r/v, fast roaming
Wireless network security management mechanism WFA, WPA and WPA2
Support VoWiFi and hotspot sharing
Multi language support
USB 2.0 (type-C) supports USB OTG
Barcode Scanning
BT ® V5.0
1D Barcode
UPC/EAN/JAN, GS1 DataBar, Code 39, Code128, Code 32, Code 93, Matrix 2 of 5, MSI, Codabar/NW7, Interleaved 2 of 5
Other sensors
Accelerometer sensor, electronic compass, Gyro sensor, light sensor
2D Barcode
PDF417, MicroPDF417, GS1 Composite ,Code11, Aztec Code, Data Matrix, QR Code, MicroQR Code, MaxiCode
4G LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28A/B28B
TDD: B38/B39/B40/B41
3G WCDMA: B1/B5/B8
2G GSM: 850,900,1800,1900MHz
Dual sim design, support 4G dual card dual standby
Scanning Model
3.8V, 4100mAH Lithium polymer battery
2D image type, support DPM barcode reading
It also has scanning indication (sound, vibration) function
Falling height
1.8m (free fall, with protective shell) fall protection
Support HF frequency 13.56MHz
NFC (near field communication)
ISO14443 A/B,
ISO15693, Felica(ISO/IEC18092)
Mifare compliance
IP level
242g(battery included)
Operating temperature
-20°C to 60°C

Powerful Barcode Reading Performance
Featuring powerful 1D/2D scanning capability, it also supports DPM codes and ensures read reliability for mobile phone screens and paper in any orientation. Powered by a removable 4250mAh battery, it is an integrated HF/NFC RFID reader/writer, GPS, and a high-resolution 13MP camera in a compact device. The EA520 gives your workforce the technology it needs to take your business to the next level.
Durable at Its Best
The EA520 enhances the industrial durable protection with features including IP67 dustproof, waterproof, and 1.5 meters resistance to fall protection (1.8 meters with boot case). That means it covers fully protected from dust and can survive in 1 meter of water for up to 30 mins.
Seamless and Connectivity
Featuring Bluetooth® 5, wireless dual bands with fast roaming and 4G connectivity for real-time data collection, staff can scans the item and instantly connect to the backend system to find out the quantity in stock or make an online order for customers. The EA520 delivers a seamlessly work experience and improves productivity for various applications.
Specially Designed for Portability
The EA520 can improve service quality of various vertical applications within the retail, logistics, hospitality, and field service industries.
Support SOTI— MobiControl
SOTI MobiControl empowers organizations to remotely track the performance of mobile devices and easily configure the application settings through the entire lifespan of mobile devices. Business operations gain better visibility into where the devices are, what tasks they’re carrying out, and how the productivity is going on. It’s a mobile solution to help you effectively communicate and oversee end-to-end points without the time and location limitations!
Optical Character Recognition (OCR)
EA630 provides Optical Character Recognition (OCR) technology in Unitech USS software to streamline your tedious typing process and minimize the typing mistakes when entering the numbers. Our OCR technology allows users to easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips, and any other readable surface.
SmartPA: Better Audio Output
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
