| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Barway |
| Minimum Order Quantity: | 2 pieces |
| Price: | $18.00/pieces 2-99 pieces |
| Packaging Details: | neutral packing |
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Type: | Barcode Scanner | Scan Element Type: | CMOS |
| Colour Depth: | 32 Bit | Interface Type: | Usb, COM |
| Max Paper Size: | A4 Size | Optical Resolution: | 4mil |
| Scan Speed: | 100times/s, 100times/s | Warranty(Year): | 1-Year |
| After-sales Service: | Others, Call Center And On-line Technical Support | Software Development Kit (SDK): | Yes |
| Color: | Black, White | Product Name: | 2D Wired Barcode Scanner |
| Size: | 180.1mm*88.7mm*66.3mm | Weight: | 108g±5g(Including Wire) |
| Material: | ABS+PC+TPE | Resolution: | 1040 X 720 Pixel Array |
| High Light: | Wired 1D 2D Barcode Reader,Handheld 1D 2D Barcode Reader,Supermarket 1D 2D Barcode Scanner |
||
|

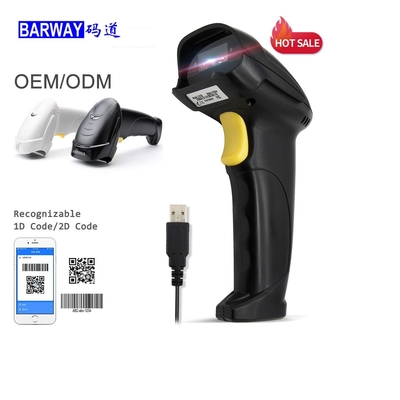

X-760H Technical Parameter
|
|
|
|
|
|
|
|
|||||||
|
Model
|
|
X-760H
|
|
|
|
|
|
|||||||
|
Item
|
|
Wired 2D Barcode Scanner
|
|
|
|
|
|
|||||||
|
Physical Parameter
|
|
|
|
|
|
|
|
|||||||
|
Material
|
|
ABS+PC+TPE
|
|
|
|
|
|
|||||||
|
Power Supply
|
|
DC 5V ±5%
|
|
|
|
|
|
|||||||
|
Power Consumption
|
|
0.85W(working)；0.55W(standby)；1.05W(maximum)【Average power consumption】
|
|
|
|
|
|
|||||||
|
Current
|
|
168mA(working)；109mA(standby)；200mA(maximum) 【Average current】
|
|
|
|
|
|
|||||||
|
Weight
|
|
108g±5g(Including wire)
|
|
|
|
|
|
|||||||
|
Size
|
|
L * W * H:180.1mm * 88.7mm * 66.3mm
|
|
|
|
|
|
|||||||
|
Color
|
|
Graywhite,Black
|
|
|
|
|
|
|||||||
|
Button Lifespan
|
|
＞100000times
|
|
|
|
|
|
|||||||
|
Performance Parameter
|
|
|
|
|
|
|
|
|||||||
|
Interface
|
|
USB；(RS232 can be customized)
|
|
|
|
|
|
|||||||
|
System Supported
|
|
Linux,Android,Windows XP,7,8,10,MAC
|
|
|
|
|
|
|||||||
|
Language Supported
|
|
American；Czech；French；German；Hungarian；Italian；Japanese；Spanish；TurkeyF；TurkeyQ
【Support virtual keyboard】 |
|
|
|
|
|
|||||||
|
Light Source
|
|
Red light(Strip)LED aim + White light LED illumination
|
|
|
|
|
|
|||||||
|
Resolution
|
|
≥4mil
|
|
|
|
|
|
|||||||
|
Bit error rate
|
|
1/5000000
|
|
|
|
|
|
|||||||
|
Motion tolerance
|
|
code 128:20cm/sec
QR:25cm/sec |
|
|
|
|
|
|||||||
|
Sensor
|
|
flat CMOS Sensor640*480
|
|
|
|
|
|
|||||||
|
Reading Mode
|
|
|
|
|
|
|
|
|||||||
|
Trigger Mode
|
|
Key trigger mode,Continuous scanning, Auto-sensing s canning mode
|
|
|
|
|
|
|||||||
|
Reading distance
|
|
10mm-600mm
|
|
|
|
|
|
|||||||
|
Prompt Mode
|
|
Buzzer, Indicator Light(LED)
|
|
|
|
|
|
|||||||
|
Print Contrast
|
|
30%
|
|
|
|
|
|
|||||||
|
Scanning Angel
|
|
Roll 360°,Pitch 45°,Yew 45°
|
|
|
|
|
|
|||||||
|
Scan speed
|
|
100 times/sec
|
|
|
|
|
|
|||||||
|
Decoding
Capability |
1D
|
● Code25-Interleaved ● Code25-Standard
● Code25-Matri ● RSS-14 ● Code39-Regular ● Code39-FullASCII ● Code93-Regular ● Code93-FullASCII ● Code128 ● Code11 ● UPCE0/E1 ● EAN/GSL/UCC-128Auto ● Codabar ● MSI ● EAN/JAN-13 ● UPC-A ● JAN/EAN-8 |
|
|
|
|
|
|||||||
|
|
2D
|
● Data Matrix ● QR ● PDF417
|
|
|
|
|
|
|||||||
|
Scanning Depth
|
|
QR 9.17 mil(7mil):6cm - 10cm
Data Matrix 9.17mil(7mil):7cm - 10cm code93 5.83mil(14mil):7cm - 10cm Refund code 28mil:10cm - 15cm WeChat Pay QR Code:9cm - 45cm |
|
|
|
|
|
|||||||
|
Environment Parameter
|
|
|
|
|
|
|
|
|||||||
|
IP Grade
|
|
IP52
|
|
|
|
|
|
|||||||
|
Operating Temp.
|
|
0 to 50℃ / 32 to 122℉
|
|
|
|
|
|
|||||||
|
Storage Temp.
|
|
0 to 50℃ / 32 to 122℉
|
|
|
|
|
|
|||||||
|
Operating Humidity
|
|
20% to 85%(No Condensation)
|
|
|
|
|
|
|||||||
|
Storage Humidity
|
|
20% to 85%(No Condensation)
|
|
|
|
|
|
|||||||
|
ESD Protection
|
|
15KV air discharge
|
|
|
|
|
|
|||||||
|
Shock Resistance
|
|
1.5m free fall on concrete surface
|
|
|
|
|
|
|||||||
|
Ambient light
|
|
0~100000LUX
|
|
|
|
|
|
|||||||
|
International Certification
|
|
|
|
|
|
|
|
|||||||
|
EMC:EN55032,55035,FCC:Part 15 Class B,Rohs
|
|
|
|
|
|
|
|
|||||||
