| Place of Origin: | China |
|---|---|
| Brand Name: | Honeywell |
| Certification: | SGS |
| Model Number: | PD43/PD43C |
| Minimum Order Quantity: | 1pcs |
| Price: | USD+698-775+pcs |
| Packaging Details: | Carton 500mmx250mmx275mm |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100+PCS+Per Month |
| Nterface Type: | USB/USB Host/Serial/Blue-tooth/Wired LAN | Black Print Speed: | 356mm (14")/sec |
|---|---|---|---|
| Max. Resolution: | 203dpi | Model Number: | TJ-4420TN(203dpi) |
| Warranty(Year): | 1-Year | Max Print Length: | 25400mm(1000'') |
| Sensor: | Gap, Black Mark, Head Closed | Product Name: | Thermal Transfer Printer/Thermal Printer |
| Use: | Barcode Printer | ||
| Highlight: | 203dpi Industrial Barcode Printer,SGS Self Adhesive Label Printer |
||

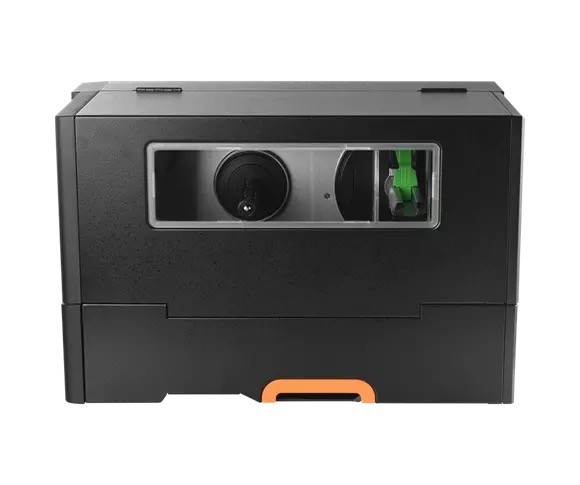

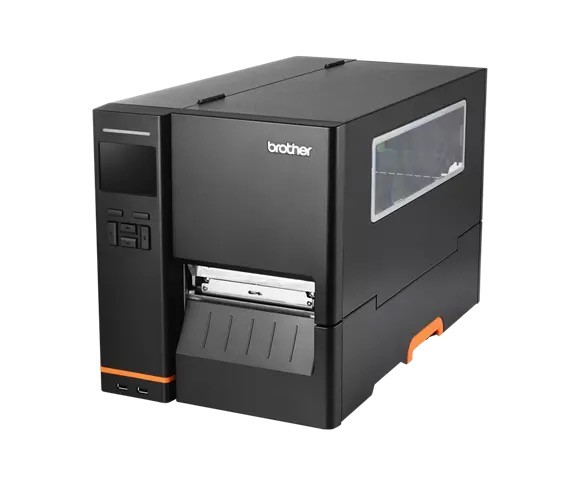

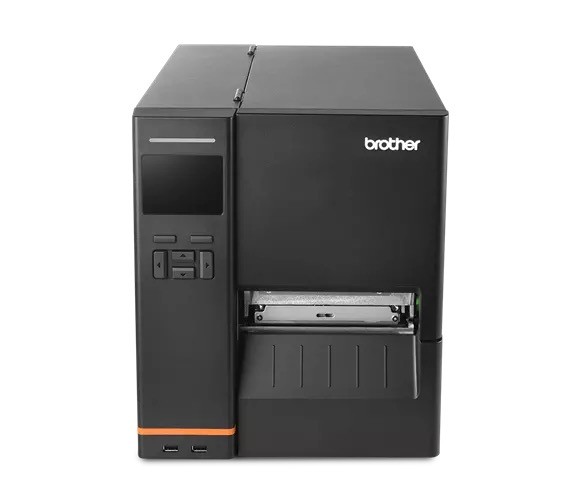

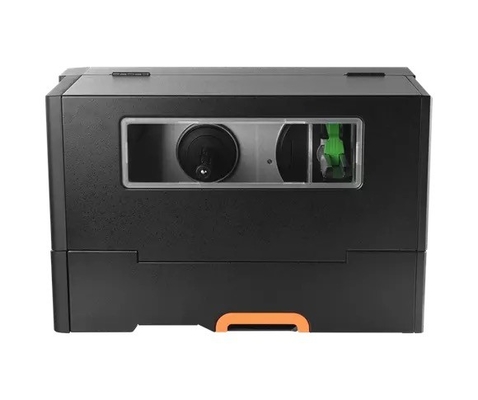

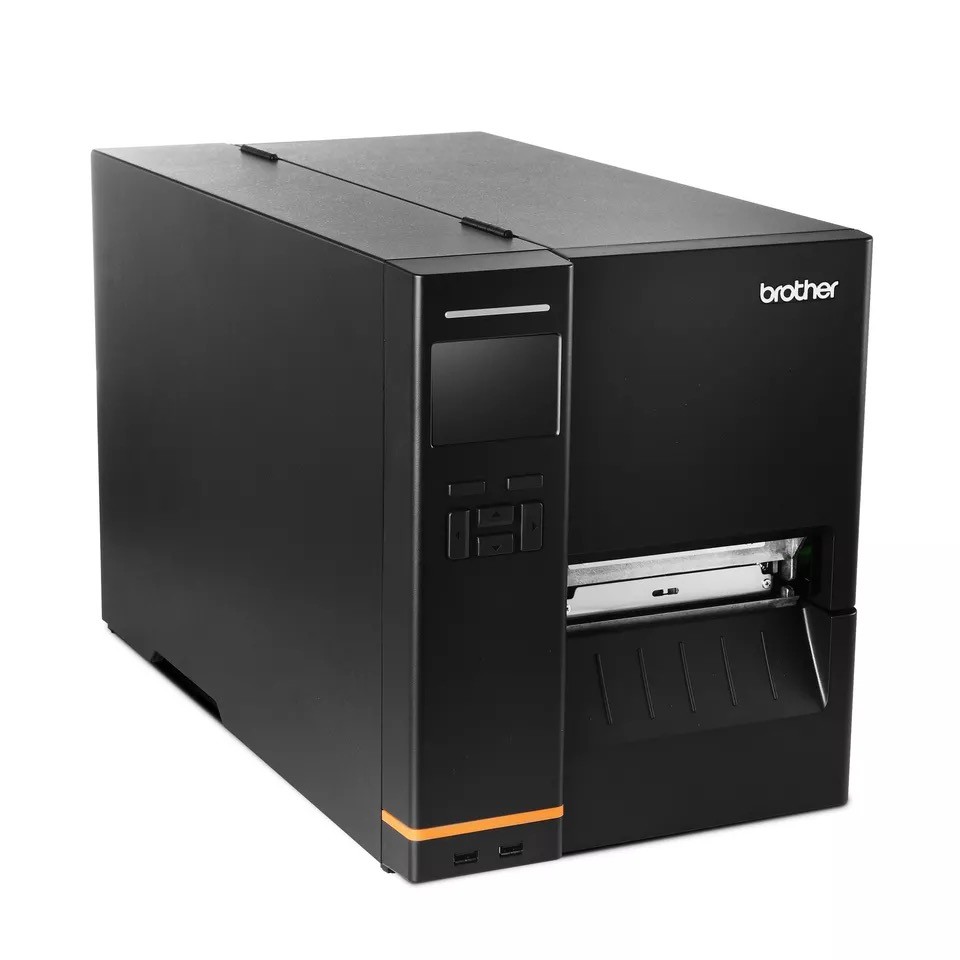

Brother TJ-4420TN 203dpi Industrial Barcode Printer Self-adhesive Label Printer
With ultra-fast print speeds up to 14 inches per second1 and a high-capacity 600 meter ribbon, the Brother Titan Industrial Printer model TJ-4420TN is perfect when you need to print large volumes of shipping labels at a staggering pace. The intuitive full-color LCD display makes setup and printing easy, while the liner rewinder and label peeler help improve efficiency.
|
Model
|
TJ-4420TN
|
TJ-4520TN
|
TJ-4620TN
|
|
|
Printing
|
Print Method
|
Direct Thermal & Thermal Transfer
|
||
|
Resolution
|
203dpi
|
300dpi
|
600dpi
|
|
|
Max Print Speed
|
356mm (14")/sec
|
305mm (12")/sec
|
152mm (6")/sec
|
|
|
Stripping Mode: Max. 4 ips
Cutter Mode: 2~14 ips
|
||||
|
Max Print Width
|
104mm
|
|||
|
Max Print Length
|
25,400 mm (1000”)
|
11,430 mm (450”)
|
2,540 mm (100”)
|
|
|
Max Print Height
|
Continuous: 5mm
Tear mode: 50 mm
Peeler mode: 12.7mm
Cutter mode: 25.4mm
|
|||
|
Sensor type
|
Gap (Removable), Black Mark (Removable), Head Off Sensor, Ribbon Remaining Sensor, Ribbon Detection, Label Remaining Sensor
|
|||
|
Sensor location
|
Adjustable: Gap, Black mark,media near end(rewinder model only)
Fixed: Ribbon encoder, ribbon end, head open |
|||
|
paper release mode
|
Standard: Continuous, tear off
Optional: Peeled,Cuttered |
|||
|
Label Parameter
|
Types
|
Continuous, die-cut, black mark, fan-fold, notch, perforated, tag, care label
Peeler mode: regular coated paper |
||
|
Wound type
|
external winding
|
|||
|
Media Width
|
20~114mm (0.79"~4.5")
|
|||
|
Media Length
|
5~25,400mm (0.20"~1,000")
|
5~11,430mm (0.20"~450")
|
5~2,540mm (0.20"~100")
|
|
|
Peeler mode: 12.7 ~ 152.4 mm
Cutter mode: 203dpi: 25.4~2,286mm(1”~90”) 300dpi/600dpi: 25.4 ~1016mm(1”~40”) |
||||
|
Thickness
|
0.06~0.28mm ordinary label
|
|||
|
Max. Diameter
|
8"
|
|||
|
Core Diameter
|
1.5"-3"
|
|||
|
Ribbon
|
Types
|
Wax,Resin,Wax-Resin ribbon
|
||
|
Ribbon face type
|
Outer Ink/Inner Ink
|
|||
|
Ribbon Width
|
25.4mm ~ 114.3mm (1"~4.5")
|
|||
|
Core inner diameter
|
1” core
|
|||
|
Ribbon Length
|
600M, 1”core, Maximum outer diameter 90mm
|
|||
|
Interface
|
USB
|
USB 2.0 high speed (device)
|
||
|
USB host
|
Stand alone: USB keyboard, USB scanner
Storage: USB thumb driver, clone and setup |
|||
|
Serial
|
RS-232 (Max. 115200 bps)
|
|||
|
Blue-tooth
|
Wi-Fi & Blue-tooth co-exist module (user option)
|
|||
|
Blue-tooth Profile
|
BT5.0, SPP(Blue-tooth Classic Mode), GATT (Blue-tooth Low Energy Mode)
|
|||
|
Wired LAN
|
Ethernet 10/100 Mbps
ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP SERVER, HTTP server, SNTP client, SMTP client, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP |
|||
|
Wireless LAN
|
Slot-in 802.11 a/b/g/n module (user option)
|
|||
|
WLAN Mode
|
WLAN: Compliant to IEEE 802.11 a/b/g/n with dual band support
Supports Bandwidth in 5GHz: 20/40 MHz 802.11n Features: 802.11n HT20 Roaming without data lost in AP cover rage Protocols: IPv4, ARP, ICMP, UDP, TCP, RAW, DHCP Client, DHCP FQDN Option, Unicast DHCP Offer |
|||
|
WLAN security
|
Open, WEP-Open, WPA-PSK/WPA2 (AES and TKIP)
Supports 802.11i security -WPA2-Enterprise: EAP-FAST, EAP-TTLS, EAP-TLS, PEAPv0, |
|||
|
Memory
|
SDRAM
|
256MB
|
||
|
FLASH
|
512MB + MicroSD Flash memory card reader or Flash memory expansion, up to 32 GB
|
|||
|
Tear bar
|
Standard in front panel
|
|||
|
Label Stripper
|
Peel off module assembly include internal liner rewinder
|
|||
|
Cutter
|
Regular guillotine cutter
|
|||
|
RTC
|
Standard
|
|||
|
Display
|
3.5‘’display
|
|||
|
Buzzer
|
Standard
|
|||
|
Housing
|
Weight
|
15.35kg (33.84lbs)
Peeler mode: 16.4kg(36.16lbs) Cutter mode: 16.9kg (37.26lbs) |
||
|
|
Size
|
276mm(W) x 326 mm(H) x 502mm(D)
Cutter mode: 276mm(W) x 326 mm(H) x 520mm(D) Peeler mode: 276mm(W) x 326 mm(H) x 502mm(D) |
||
|
Power
|
Adapter
|
Internal switching power supply
Input: AC 100-240V, 4-2A, 50-60Hz Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243.4W |
||
|
Operating characteristics
|
Operating Temperature
|
0 to 40ºC
|
||
|
Operating Humidity
|
25% to 85% non-condensing
|
|||
|
Storage Temperature
|
‘-40 to 60℃
|
|||
|
Storage Humidity
|
10% to 90% non-condensing
|
|||
Real features
1. Print barcode labels, shipping labels, and more at up to 14 inches per second1 print speed
2. 203dpi thermal print technology for top quality
3. Stay printing longer with up to 600m ribbon capacity
4. Ethernet/LAN, USB 2.0, Host-USB, and RS232C Serial connectivity let you share the printer between multiple users and manage remotely
5. See printer status and make selections on the fly with a bright multicolor status light and LCD display
6. Explore field upgradeable options to customize your printer, including: Wi-Fi®, Bluetooth® wireless technology, label peeler and label cutter
7. Make integration easy with WMS and ERP compatibility and a full suite of included emulations, SDKs, and drivers
8. Get the confidence of a 2-year Premier Limited Warranty
