| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Barway |
| Certification: | CE,CCC,ROHS |
| Price: | $25.00/pieces 1-9 pieces |
| Packaging Details: | neutral packing |
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Type: | Barcode Scanner | Scan Element Type: | CMOS, CMOS |
| Colour Depth: | 32 Bit | Interface Type: | Usb |
| Max Paper Size: | A4 | Optical Resolution: | 4mil, 1280*960 |
| Scan Speed: | 200mm/s, 100mm/s | Warranty(Year): | 1-Year |
| After-sales Service: | Others, Call Center And On-line Technical Support | Software Development Kit (SDK): | Yes |
| Product Name: | 1D Wireless BT Barcode Scanner | Interface: | USB+BT |
| Read Precision: | 1280*960 | Dimensions: | 90mm(L)*65mm(W)*175mm(H) |
| Weight: | 195g | Warranty: | 1 Year |
| High Light: | CMOS portable qr code reader,200mm/s portable qr code reader,2.4GHz wireless barcode scanner |
||

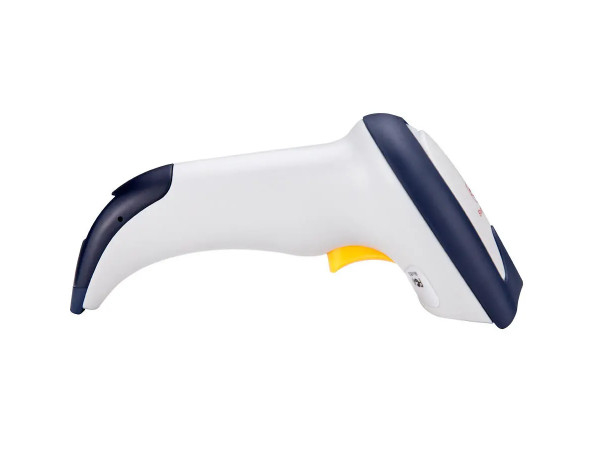

Barway 1D Wireless BT Android Barcode Reader Scanner Support Mobile Payment Long Distance Scanner
* Complete independent research and development, possessing the complete set of patent, plug and play without the need to install driver.
* Wide voltage design to avoid the data can’t be transmitted due to voltage fluctuation.
* 32-bit master chip equipped with patented software, the scanner can smoothly decode reflective, wrinkled, blurred, and colorful barcode, and can also normally scan in light and dark environment.
* Adopt all tantalum capacitors and anti-oxidation optical technology, avoiding the problem of sensitivity declining after long-term using.
Specification
|
Performance parameters |
|
|
|
Device type |
1D Barcode scanner |
|
|
Scanning method |
CCD |
|
|
Resolution |
640×480 |
|
|
Light source |
Lighting: white LED Focus: red LED 625nm |
|
|
Depth of field |
EAN-13(13mil)55-220mm |
|
|
Scanning angle |
Field of view angle: horizontal 45°, vertical 34° |
|
|
Interface |
RS-232,USB |
|
|
Reading code system |
1D:Code 128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-4,Matrix 2 of 5,Industrial |
|
|
Accuracy |
≥4mil |
|
|
Mechanical / electrical |
|
|
|
Protective design |
Protection class (optional): IP42 |
|
|
Electrostatic discharge |
±15kV (air discharge),±8kV (direct discharge) |
|
|
How to prompt |
Buzzer, LED indication |
|
|
Power supply |
DC 5V±10% Current: operating: 62ma (typical), 115.5 mA (Max); standby: 33ma |
|
|
Power consumption |
0.31W |
|
|
Other parameters |
|
|
|
Product size |
101×68×146mm |
|
|
Product weight |
115g |
|
|
Environmental parameters |
Operating temperature: -20-50℃, storage temperature: -40-70℃ Relative humidity: 5-95% (non-condensing) |
|
