Private Mold: | NO | Products Status: | Stock |
---|---|---|---|
Type: | Barcode Scanner | Scan Element Type: | CMOS, CMOS |
Colour Depth: | 32 Bit | Interface Type: | Usb |
Max Paper Size: | A4 | Optical Resolution: | 4mil, 1280*960 |
Scan Speed: | 200mm/s, 100mm/s | Warranty(Year): | 1-Year |
After-sales Service: | Others, Call Center And On-line Technical Support | Software Development Kit (SDK): | Yes |
Product Name: | 1D Wireless BT Barcode Scanner | Interface: | USB+BT |
Read Precision: | 1280*960 | Dimensions: | 90mm(L)*65mm(W)*175mm(H) |
Weight: | 195g | Warranty: | 1 Year |
High Light: | BT Android Barcode Reader Scanner,Barway 1D Wireless Barcode Reader Scanner |

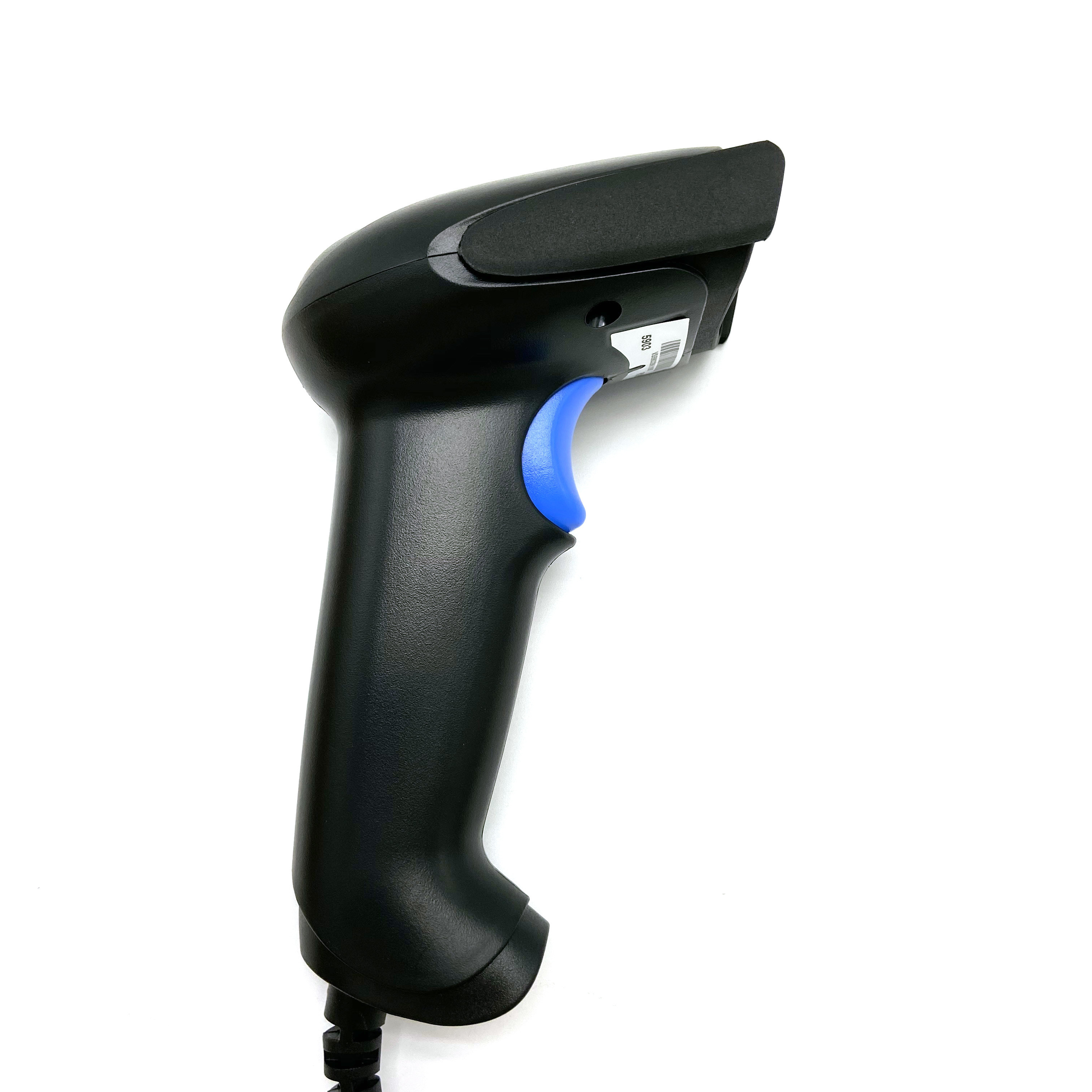

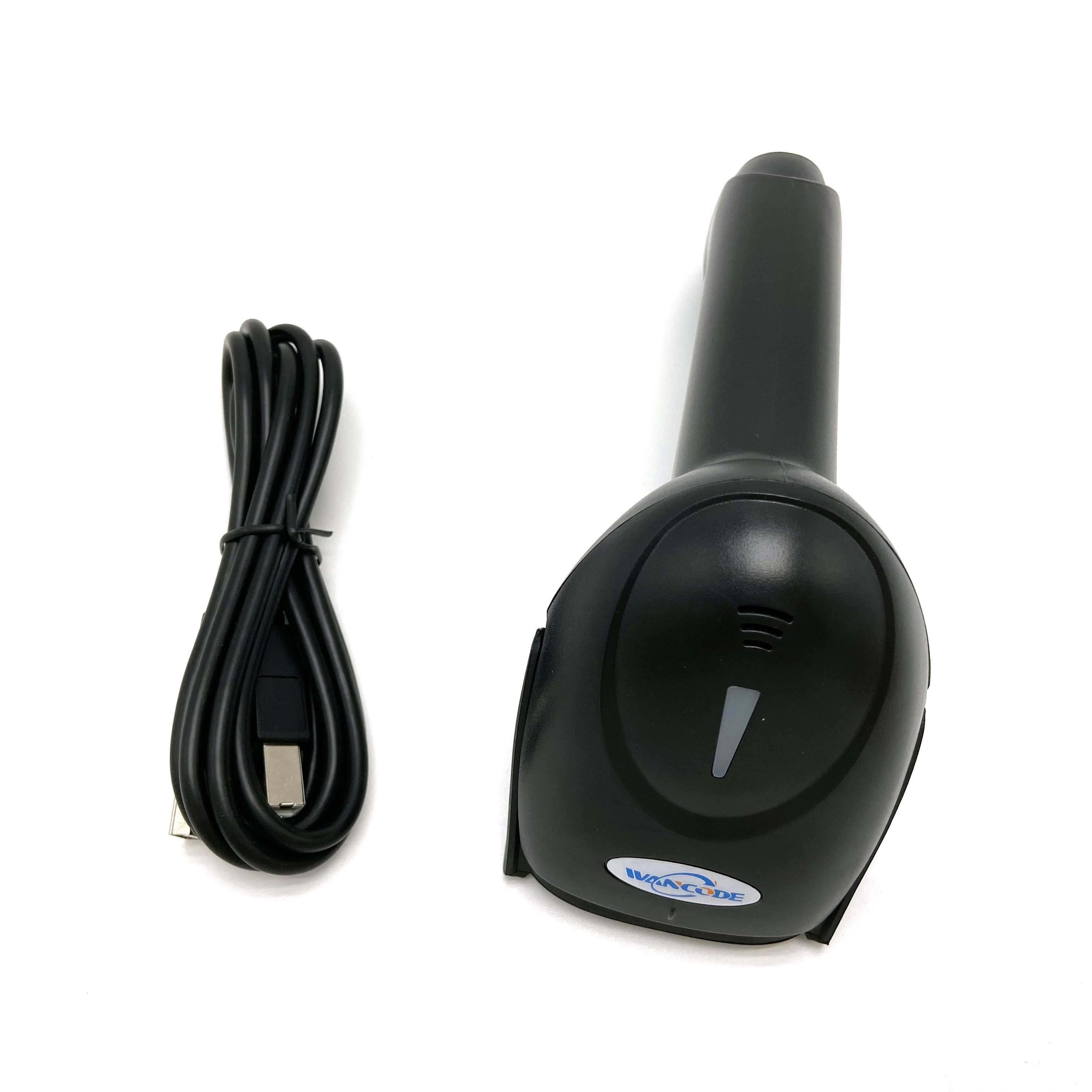

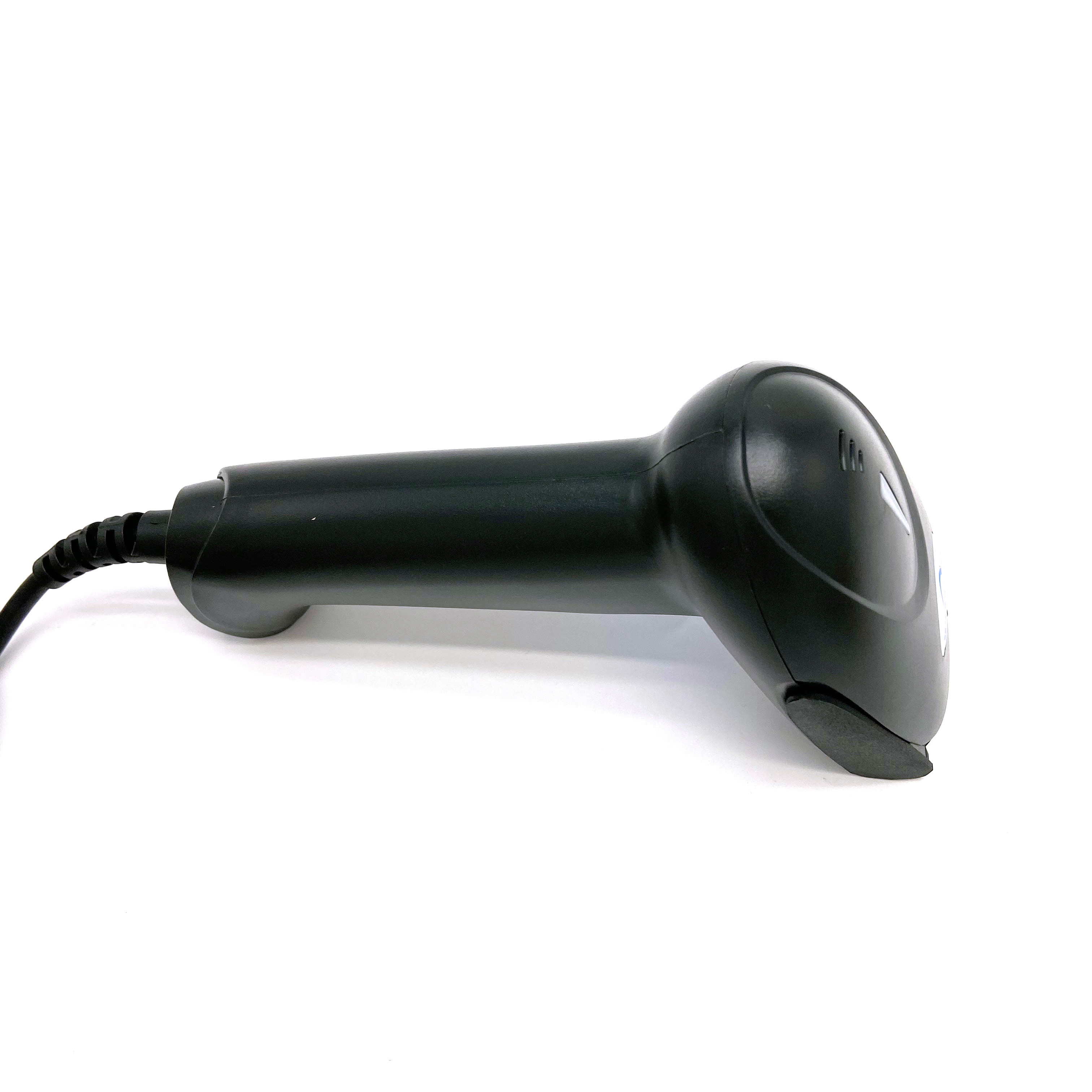

Barway 1D Wireless BT Android Barcode Reader Scanner Support Mobile Payment Long Distance Scanner
Specification
Performance parameters |
|
|
Device type |
1D Barcode scanner |
|
Scanning method |
CCD |
|
Resolution |
640×480 |
|
Light source |
Lighting: white LED Focus: red LED 625nm |
|
Depth of field |
EAN-13(13mil)55-220mm |
|
Scanning angle |
Field of view angle: horizontal 45°, vertical 34° |
|
Interface |
RS-232,USB |
|
Reading code system |
1D:Code 128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-4,Matrix 2 of 5,Industrial |
|
Accuracy |
≥4mil |
|
Mechanical / electrical |
|
|
Protective design |
Protection class (optional): IP42 |
|
Electrostatic discharge |
±15kV (air discharge),±8kV (direct discharge) |
|
How to prompt |
Buzzer, LED indication |
|
Power supply |
DC 5V±10% Current: operating: 62ma (typical), 115.5 mA (Max); standby: 33ma |
|
Power consumption |
0.31W |
|
Other parameters |
|
|
Product size |
101×68×146mm |
|
Product weight |
115g |
|
Environmental parameters |
Operating temperature: -20-50℃, storage temperature: -40-70℃ Relative humidity: 5-95% (non-condensing) |
