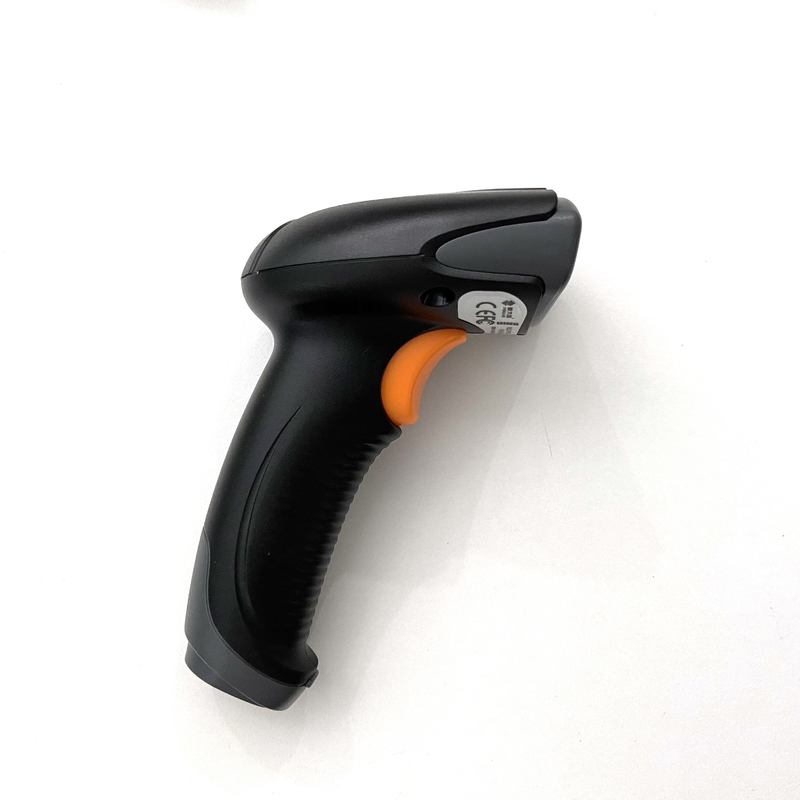

Ergonomic Windows 1D 2D Barcode Scanner Reader USB Interface

Ergonomic Windows 1D 2D Barcode Scanner Reader USB Interface
Ergonomic Windows 1D 2D Barcode Scanner Reader USB Interface Ergonomic Windows 1D 2D Barcode Scanner Reader USB Interface

Large Image :  Ergonomic Windows 1D 2D Barcode Scanner Reader USB Interface

Product Details:
Place of Origin: JiangSu,China
Brand Name: Barway
Certification: CCC/CE/ROHS
Model Number: NLS-0Y20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 25-30USD
Packaging Details: neutral packing
Delivery Time: 7-15days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000box per week

Ergonomic Windows 1D 2D Barcode Scanner Reader USB Interface

Description
Type: 2D Barcode Scanner Resolution: 4mil
Interface: USB Scan Speed: 200mm/s
After-sales Service: Call Center And On-line Technical Support Brand: Barway
High Light:

Windows 1D 2D Barcode Scanner

,

Ergonomic 1D 2D Barcode Scanner

,

USB Interface 1d barcode reader

Barway Wired Handheld 1D 2D Barcode Scanner NLS-0Y20 For Warehouse



Feature

  • Wireless + Wired USB dual mode.
  • Ergonomic design, comfortable to hold.
  • Plug and play, work with all POS system.
  • Support multi-languages and adding prefix/suffix.
  • Excellent decoding ability, fast to scan 1D/2D barcodes on paper/screen.
  • Can store 100,000 barcode in offline storage mode, very convenient to use.
  • Compatible for Mac/Android/Linux/Windows system, drive free, plug & play.
  • Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
  • Quickly and accurately identify 1D code and 2D code.
  • Green low power consumption.
  • Rich application scenarios.
  • Ergonomic design.
  • Stable, precise, convenient, practical, and efficient.
  • Compatible with multiple systems.

Speciafication

System Specifications
Image Sensor
640*480CMOS
Illumination
White LED



Aiming
Red LED (625nm)



Symbologies
1D PDF417, QR Code, Data Matrix



2D Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, RSS-14, ISBN/ISSN, UPC-E, UPC-A,
Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Code 39,
Codabar, Code 93, Code 11,Plessey, MSI-Plessey, RSS-Limited,RSS-Expand.



Resolution*
≥4mil



Typical Depth of Field*
EAN-13 55mm-220mm (13mil) QR Code 35mm-110mm (15mil)



Scan Angle**
Pitch ±45°
Roll 360°
Skew ±40°



Field of View
Horizontal 45°, Vertical 34°



Min. Symbol Contrast
30%



Physical Specifications
Interfaces
RS-232, USB
Dimensions (LxWxH)
145x101x68mm



Weight
115g



Notification
Beep, LED indicator



Operating Voltage
5VDC±10%



Rated Power Consumption
0.31W (typical)



Current @ 5VDC
Operating 62mA (typical), 115.5 mA (max.)



Idle 33mA



Input/Output Ports
Operating Temperature
--20°C to 60°C
Storage Temperature
-40°C to 70°C



Humidity
5%-95% (non-condensing)



ESD
±15 KV (air discharge); ±8 KV (direct discharge)



Drop
1.2m



Sealing
IP42
