| Place of Origin: | Jiangsu, China |
|---|---|
| Price: | $120.00 - $280.00/sets |
| Packaging Details: | single item with box or 4pcs/CTN |
| Private Mold: | Yes | Products Status: | Stock |
|---|---|---|---|
| Interface Type: | USB+Serial Port+Parallel Port | Max Paper Size: | 20-120mm |
| Black Print Speed: | 2-6inch/s | Max. Resolution: | 203DPI |
| Warranty(Year): | 1-Year | After-sales Service: | Return And Replacement, Call Center And On-line Technical Support, Onsite Training And Inspection |

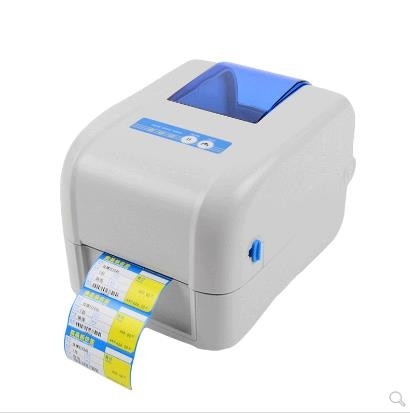

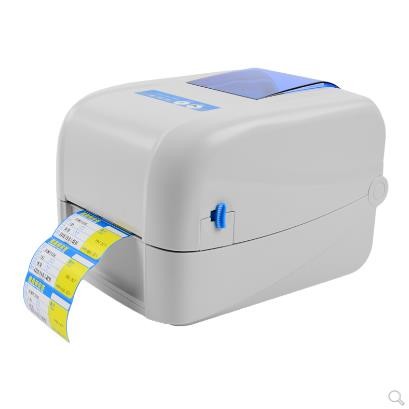

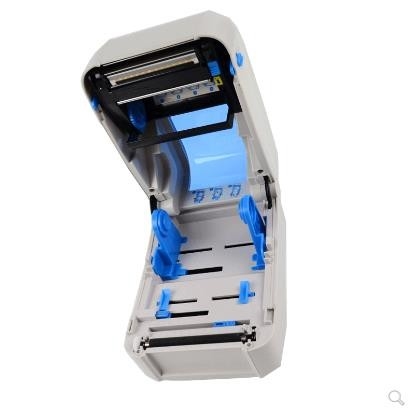

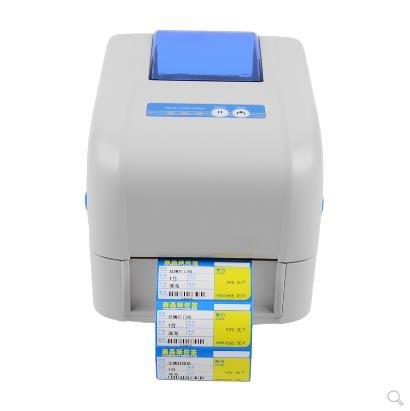

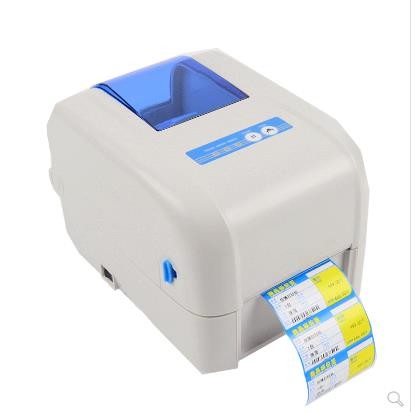

| Software Development Kit (SDK): | Yes | Product Name: | Thermal Transfer Barcode Printer |
| Printing Method: | Direct Thermal / Thermal Transfer | Print Command: | TSPL |
| Interface: | Serial+USB+Parallel (standard) | Printing Speed: | 2~6inch/s |
| Media Type: | Continuous, Die-cut, Fan-fold, Black Mark | Media Roll Core Size: | 1inch(25.4mm) |
| Ribbon Width: | Max.110mm,Min.30mm | Printer Weight: | 2.50kg |
| Printer Dimension: | 278x210x180mm | Type: | Thermal |
| Style: | Black And White | Use: | Barcode Printer |
| Highlight: | Thermal transfer barcode printer,Logistics Thermal Label Printer,6inch/s Thermal Label Printer |
||
|
Model
|
GP-1824TC
|
GP-1834TC
|
|
|
Application
|
Supermarket, catering, clothing, logistics, tea, baking chain stores, etc
|
|
|
|
Printing method
|
Thermal transfer / thermal printing
|
|
|
|
Print command
|
TSPL
|
|
|
|
Resolution
|
203DPI
|
300DPI
|
|
|
Printing speed
|
2~6inch/s
|
2~5inch/s
|
|
|
Printing width
|
104mm
|
106mm
|
|
|
Storage
|
DRAM:8MB FLASH:4MB
|
|
|
|
Interface
|
USB + Serial port + Parallel port
|
USB + Serial port + Parallel port
|
|
|
Graphic
|
monochrome PCX, BMP and other image files can be downloaded to flash / DRAM
|
|
|
|
1D code / QR code
|
CODE128,EAN128,ITF,CODE39,EAN13,EAN13+2,EAN13+5,EAN8,EAN8+2,EAN8+5,CODABAR,POSTNET,UPC-A,UPC-A+2,UPC-A+5,UPC-E,UPC-E+2,UPC-E+5,CPOST,MSI,MSIC,PLESSEY,ITF14,EAN14,QRCODE
|
|
|
|
Character
|
font 0 to font 8
|
|
|
|
Paper type
|
Continuous paper, gap paper, folding paper, black label paper
|
|
|
|
Medium width (including substrate)
|
30-120mm
|
|
|
|
Outer diameter of paper roll
|
Maximum outside diameter of built-in roll Φ 127mm
|
|
|
|
Paper thickness
|
Maximum 0.254mm (10mil) minimum 0.06mm (2.36mil)
|
|
|
|
Roll axis size
|
25.4mm(Min)
|
|
|
|
Carbon ribbon outer diameter
|
Max. 67mm
|
|
|
|
Ribbon length
|
300m
|
|
|
|
Carbon belt axis size
|
1inch(25.4mm)
|
|
|
|
Ribbon width
|
Maximum 110mm, minimum 30mm
|
|
|
|
Carbon tape winding form
|
External winding type
|
|
|
|
Media processing
|
Tear off (standard)
Cutter, stripping (optional) |
|
|
|
Paper output mode
|
Front exit
|
|
|
|
Power input Input
|
DC24V 2.5A
|
|
|
|
Work environment
|
5 ~ 40 ℃, 20% ~ 90% no condensation
|
|
|
|
storage environment
|
- 25 ~ 55 ℃, 20% ~ 93% no condensation
|
|
|
|
Net weight
|
2.50kg
|
|
|
|
Product size
|
278x210x180mm(L*W*H)
|
|
|
|
Heat sensitive sheet
|
30km
|
|
|
|
Product certification
|
CCC,RoHS,SRRC
|
|
|
