| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Honeywell |
| Price: | $699.00/pieces 1-9 pieces |
| Packaging Details: | Retail Box + Export Carton |
| Supply Ability: | 1500 Piece/Pieces per Year |
| Private Mold: | Yes | Products Status: | Stock |
|---|---|---|---|
| Interface Type: | USB./Ethernet | Max Paper Size: | 108mm |
| Black Print Speed: | 8 Dot/mm | Color Print Speed: | N/A |
| Max. Resolution: | 203/300dpi | Warranty(Year): | 1-Year |
| After-sales Service: | Return And Replacement | Software Development Kit (SDK): | Yes |

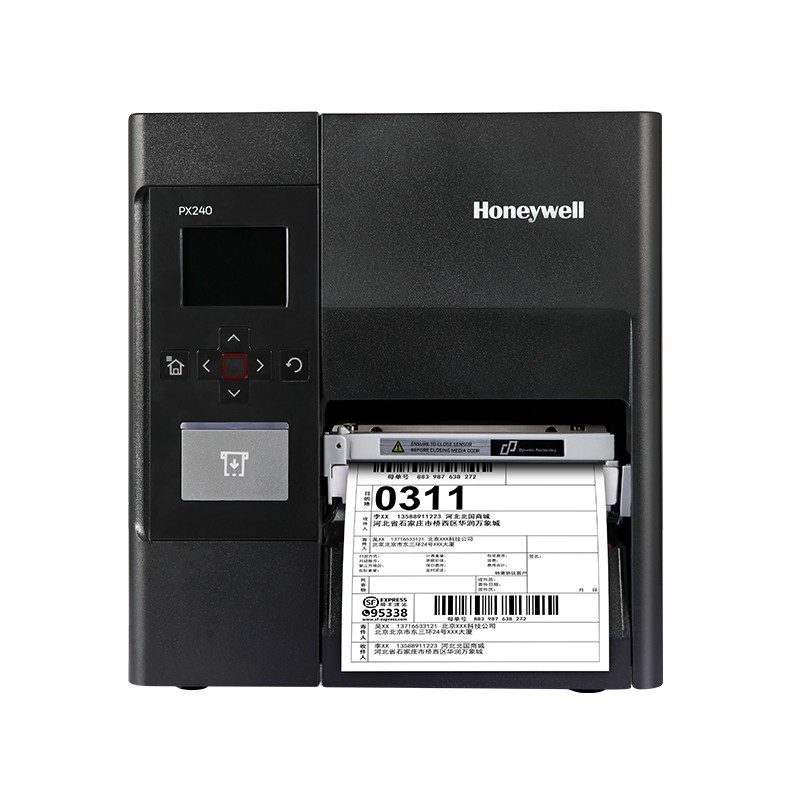

| Product Name: | 108mm Thermal Transfer&Directly Printer | Interface: | USB Interface |
| Command: | ESC\POS+TSPL | Weight: | 17.5KGS |
| Application: | Industrial | Printing Speed: | 8 Dot/mm |
| Highlight: | Thermal Directly Industrial Barcode Printer,Thermal Transfer Industrial Barcode Printer |
||
|
Physical Parameters
|
|
|
Volume
|
484*292*283mm
|
|
Weight
|
17.5kgs
|
|
Print Width
|
|
|
Maximum width of print (203dpi)
|
108mm (4.25inches)
|
|
Maximum width of print (300dpi)
|
106mm (4.17 inches)
|
|
Maximum width of print (400dpi)
|
104mm (4.09 inches)
|
|
Print Length
|
|
|
Maximum length of print (203dpi)
|
4.8m(15.75foot)
|
|
Maximum lengthof print (400dpi)
|
1.2m(3.94foot)
|
|
Resolution
|
|
|
203dpi
|
8 dots/mm
|
|
300dpi
|
11.8 dots/mm
|
|
Interface
|
|
|
Standard
|
1.Ethernet 10/100 Mbps
2.RS-232, up to 115.2 kB/s
3.Supported serial protocols: Fingerprint/Direct protocol:
XON/XOFF, ENQ/ACK, DSR/DTR, RTS/CTS 4.IPL: XON/XOFF, Honeywell Standard Protocol
5.USB 2.0
6.USB Host
|
|
Consumables
|
|
|
Label types
|
Logos and labels, linerless and liner media
|
|
Max/Min width
|
114/19mm (4.5/0.75in)
|
|
Thickness
|
3 mils to 10.4 mils
|
|
Style
|
roll paper or folded
|
|
Sensing
|
Gap, Notch, Black Mark, Continuous
|
|
Label roll maximum diameter
|
213mm (1.5-3 inches)
|
|
Ribbon support
|
inner carbon, outer carbon
|
|
Maximum reel diameter
|
80mm (3.15 inches), about 450m
|
|
Inner diameter of reel core
|
25mm (1 inch)
|
|
Media Types
|
Wax-Based, Hybrid-Based, Resin
|
|
Supported Protocols
|
TCP/IPsuite(TCP,UDP,ICMP,IGMP),LPR/LPD,FTP,BOOTP,DHCPHTTP,SNMPv1/2c/3,SNMP-MIBII supported-over UDP/IP,SMTP Support IPV4, IPV6
|
|
Barcode Symbol
|
Supports all major 1D and 2D symbols Including Aztec,Code
16k,Code49,DataMatrix,DotCode,EAN-8,EAN-13,EAN,UCC128,GridMatrix,HIBC39,HIBC 128,MaxiCode,MSI(modified Plessey),PDF417,mICRO pdf417,Planet,Plessey,Postnet, QR-Code, RSS-14(variations) |
|
Supported standards
|
UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (Shipping part label); OGMARS;
POSTNET; HIBCC; ISBT 128; GM1724; UPS Shipping Label; Global Transport Label |
|
Printer command language
|
IPL, DP, ZSim 2.0 (ZPL), DSim (DPL)
XML support for SAP®AII and Oracle®WMS
|
|
Application/Driver
|
• InterDriver™ Windows printer driver
• Honeywell Certified Device Types for SAP®
• Honeywell Label Design and Printing Package
|
|
Smart print language
|
• Honeywell C# for Printers
• Smart Printing Development Resource Kit
• Write applications through a .NET compatible development
environment • Honeywell Fingerprint ApplicationBuilder (IFAB)
|
|
Configuration and device management support
|
• PrintSet for printer configuration
• SmartSystems™
• Sophisticated web interface for configuration, upgrades and 1:1 management
|
|
Working Environment
|
|
|
Operating ambient temperature
|
+5°C to +40°C
|
|
Storage temperature
|
+20°C to +60°C
|
|
Humidity
|
20-80%,
non-condensing |
|
Certificates
|
ROHS,CCC,Compliant
|
